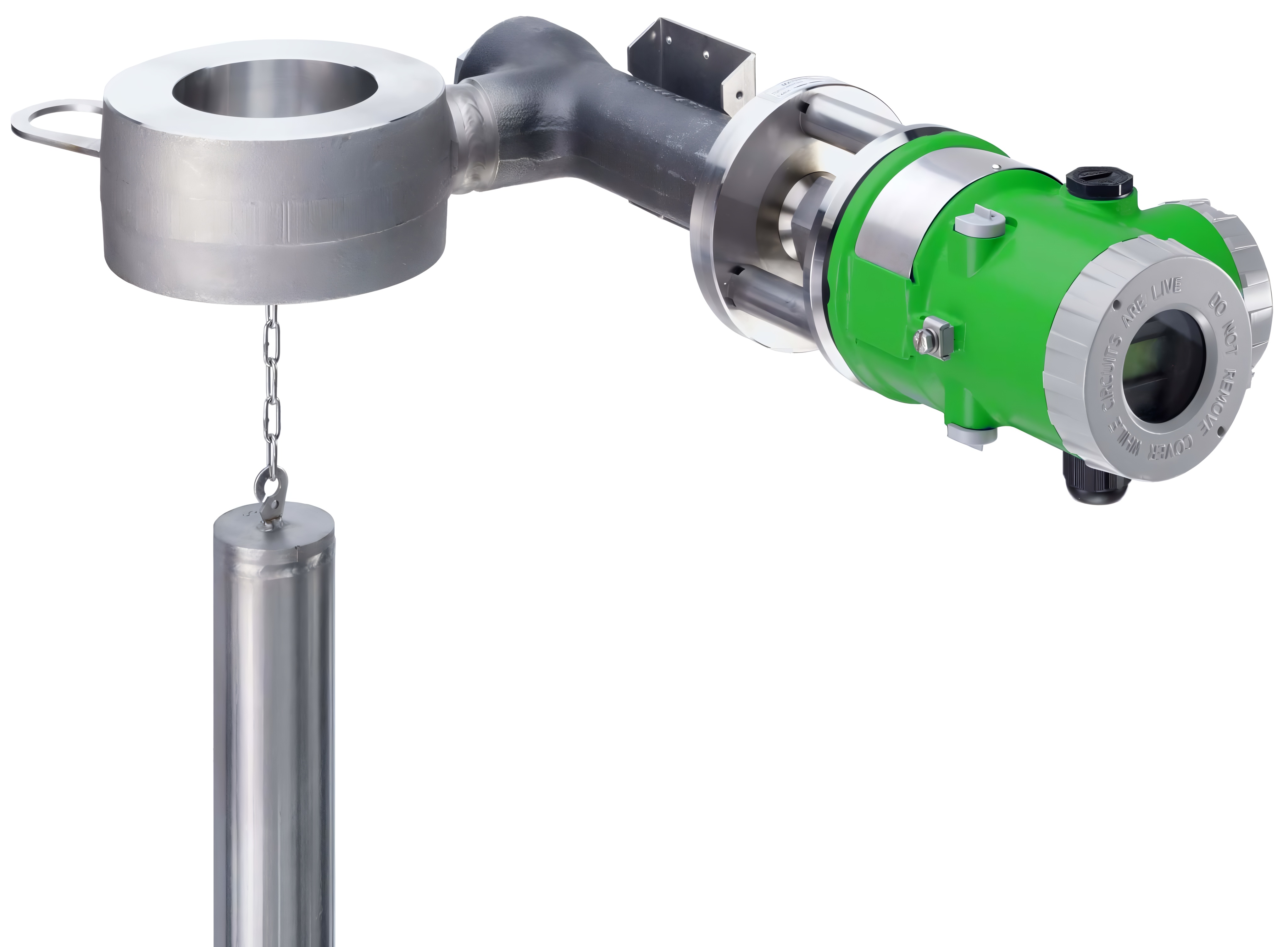

Displacer Level Transmitter 24LLD

schneider

$5594.00$4652.00

	Main
Range of Product	Level
Product or Component Type	Buoyancy transmitter
Product Specific Application	Liquid level measurement Interface level measurement Density measurement
[Us] rated supply voltage	12...42 V DC
Kit composition	transmitter displacer element (to be purchased seperately))

	Complementary
Housing material	Aluminium Stainless steel
Pressure Rating	14.5…7251.9 psi (1…500 bar)
Safety level	SIL2
Communication port protocol	HART, 4...20 mA FOUNDATION fieldbus
Display Type	LCD display
Measurement accuracy	+/- 0.2 % of reading
Measurement range	0...10 m 0...30 ft
Type of measurement	Level inferred by buoyant force
Connector type	DIN flange ASME flange JIS flange

	Environment
Ambient air temperature for operation	-321…932 °F (-196…500 °C)
Ambient Air Temperature for Storage	-40…185 °F (-40…85 °C)
Product certifications	CE ATEX FM CSA EAC NEPSI INMETRO PED
Standards	EN/IEC 61508 NACE
IP Degree of Protection	IP66
