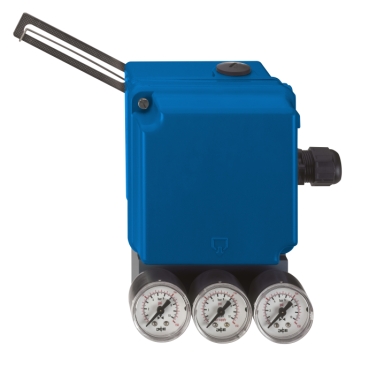

Electro Pneumatic Positioner SRI986

schneider

$1827.00$1450.00

	Main
Range of Product	Valve Positioners
Product or Component Type	Valve positioner
Communication port protocol	HART, 4...20 mA
Market Segment	Process industry

	Complementary
Input type	Current 4...20 mA Current 0...20 mA Voltage 0...10 V
Housing material	Aluminium alloy
Input pressure	1.4...6 bar 20...90 psi
Stroke range	8...200 mm
Maximum hysteresis	0.3 %
Linearity	< 1 % of the travel span
Pneumatic operation	Single acting Double acting
Operating angle	30…180 °

	Environment
Ambient air temperature for operation	-40…176 °F (-40…80 °C) -40…80 °C (-40…176 °F)
IP Degree of Protection	IP54
Product certifications	ATEX FM CSA
