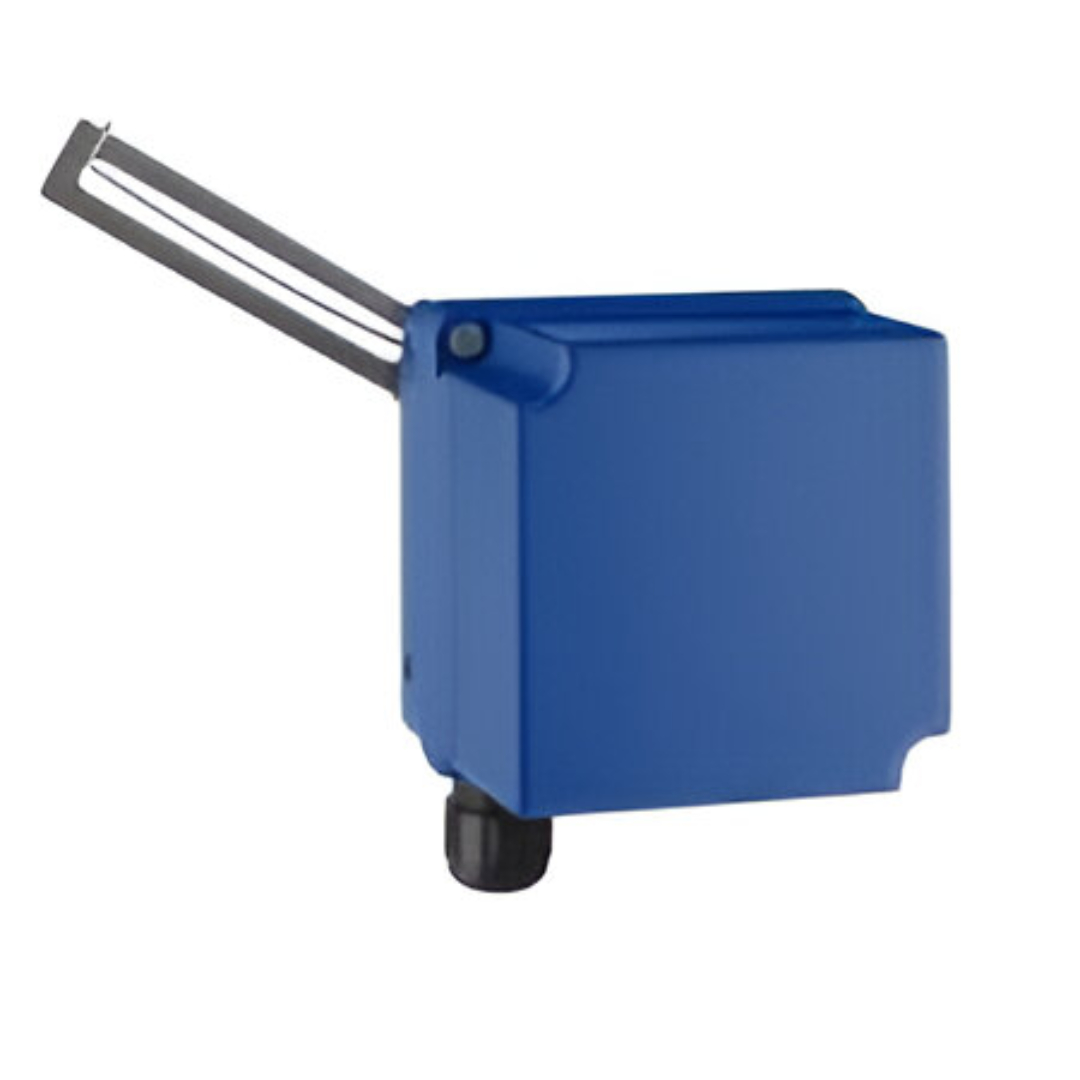

Electronic Positioner Transmitter SMI983

FEATURES

• Non-reactive conversion of stroke position into a loadindependent 4-20 mA DC signal

• Two-wire circuit

• Easy adjustment of zero and span with two Push Buttons and two LEDs

• Wear free, highly linear scanning with conductive plastic precision potentiometer

• Designed for stroke valves

• Specially suitable for small strokes by using a movement amplification mechanism

• Mounting according to IEC 534, part 6 (NAMUR)

• Simple matching to strokes of 5 to 100 mm and, by means of rotary adaptor, to angular displacements of 30°to 120°

• Explosion protection: II 2 G Ex ia IIB/IIC T4/T6 according to ATEX Explosion protection according to CU TR

• EMC in accordance with the international standards and laws (CE)
