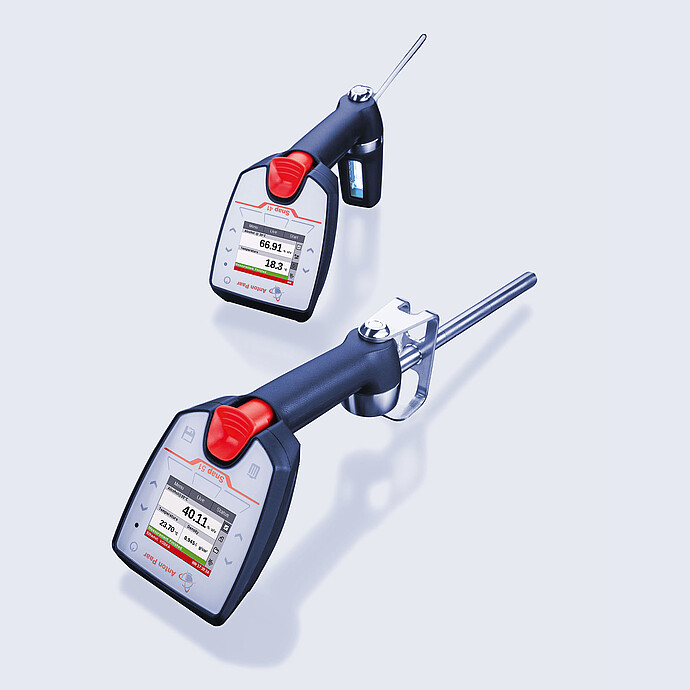

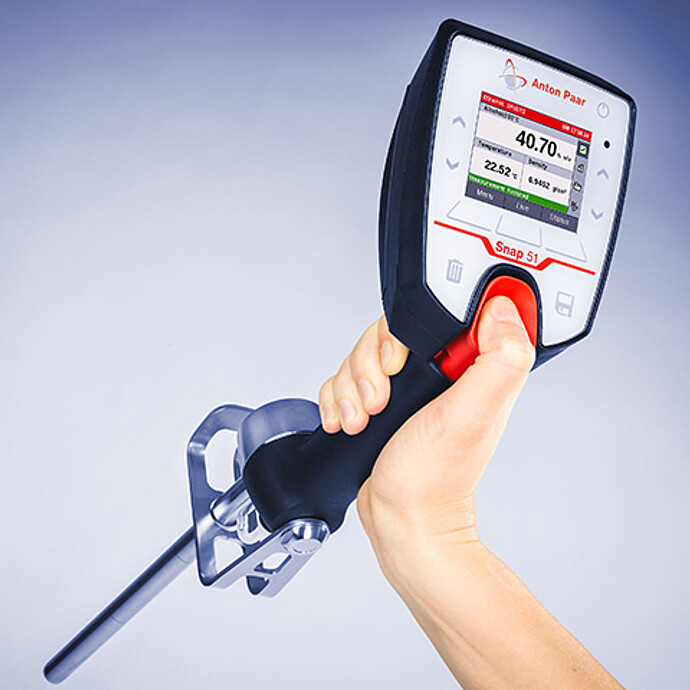

Handheld Alcohol Meter

Snap 41

Snap 51

Patents granted

Patent AT516421 (B1), EP3015847 (B1)

–

Measuring range

Alcohol: 0 %v/v to 100 %v/v
Temperature: 5 °C to 30 °C (41 °F to 86 °F)
(automatic temperature correction)

Alcohol: 0 %v/v to 100 %v/v
Temperature: 0 °C to 40 °C (32 °F to 104 °F)
(automatic temperature correction)

Accuracy

Alcohol: 0.2 %v/v
Temperature: 0.2 °C (0.4 °F)

Alcohol: 0.1 %v/v
Temperature: 0.1 °C (0.2 °F)

Repeatability, s.d.*

Alcohol: 0.1 %v/v
Temperature: 0.1 °C (0.2 °F)

Alcohol: 0.05 %v/v
Temperature: 0.05 °C (0.1 °F)

Reproducibility, s.d.*

Alcohol: 0.15 %v/v

Alcohol: 0.07 %v/v

Resolution

Alcohol: 0.01 %v/v
Temperature: 0.1 °C (0.1 °F)

Alcohol: 0.01 %v/v
Temperature: 0.01 °C (0.01 °F)

Ambient temperature

0 °C to 35 °C (32 °F to 95 °F)

-10 °C to +50 °C (14 °F to 122 °F)

Measuring principle

Oscillating U-tube technology

Oscillating U-tube technology

Supported measuring units

Alcohol concentration in %v/v at 20 °C or at 15 °C, °Proof

Alcohol concentration in %v/v (at 20 °C or at 15 °C) or °Proof
Density
Sugar/extract concentration in °Brix or °Plato
Ten programmable custom-specific measuring units

Internal Storage

–

1024 measured results, 250 sample IDs, 30 measuring methods

Power supply

Three 1.5 V LR06 AA alkaline batteries

Three 1.5 V LR06 AA alkaline batteries

Sample volume

2 mL

2 mL

Dimensions

245 mm x 103 mm x 126 mm (9.6 in x 4 in x 5 in)

468 mm x 108 mm x 119 mm (18.4 in x 4.3 in x 4.7 in)

Weight

660 g (23.3 ounces)

860 g (30.3 ounces)

Interfaces

Bluetooth® (for software update only)

Bluetooth® (data transfer to a PC or printer), RFID (sample identification)

Protection class

IP54

IP54

Optional available accessories

Wristband, rubber protection housing for the operating panel, transportation suitcase

Wristband, rubber protection housing for the operating panel, portable Bluetooth® printer, Bluetooth® USB adapter

Scope of supply

Portable alcohol meter, filling tube, adapter for syringe filling, syringes, rubber protection for measuring cell, three batteries, Allen key, instruction manual

Portable alcohol meter, transportation case, three batteries, Allen key, silicone hose, instruction manual
