HOW TO SELECT THE RIGHT LEVEL TRANSMITTER FOR YOUR APPLICATION

INTRODUCTION

Selecting the right level transmitter is critical for accurate, safe, and efficient process control across industries—from water treatment to oil storage. This guide will help you navigate the choices, provide clear comparisons, and include illustrative diagrams and photos for practical understanding.

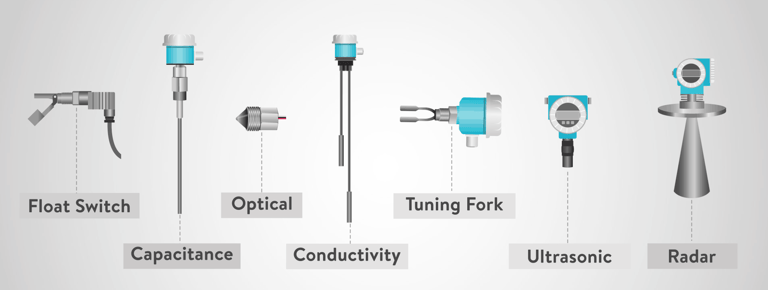

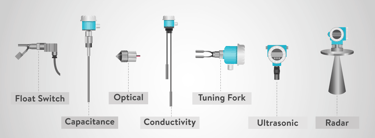

1. UNDERSTAND THE TYPES OF LEVEL TRANSMITTERS

Different technologies suit different applications. Here’s a breakdown:

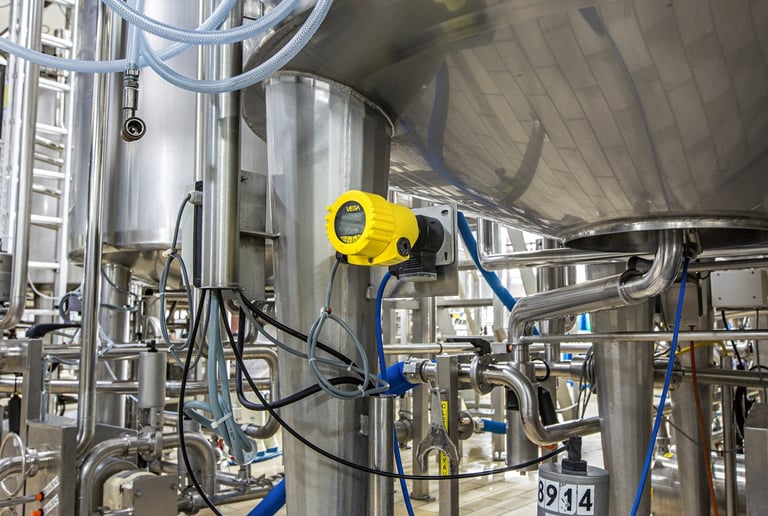

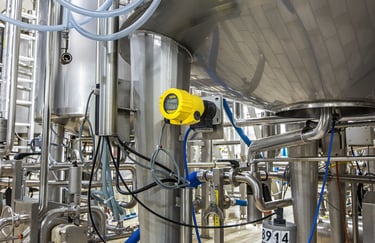

• Hydrostatic / Submersible (Pressure-Based): Good for clean liquids in vented tanks; may be affected by density changes and unsuitable for aggressive or foamy media.


• Ultrasonic (Non-Contact): Sends sound waves and measures echo; economical for water/wastewater but affected by foam, vapor, and temperature.

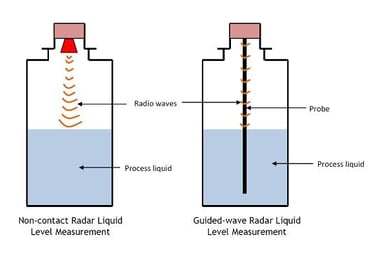

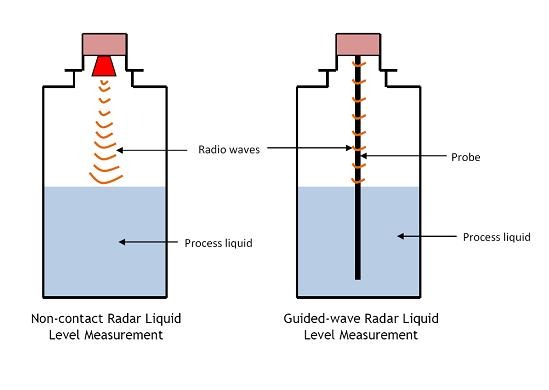

• Radar / Microwave (Non-Contact): Emits microwaves; highly accurate and reliable in harsh conditions (foam, vapor, temperature extremes).


• Guided Wave Radar (GWR): Radar with guided probe—effective for foam, turbulence, or low-dielectric materials.


• Capacitance: Detects dielectric changes; excels with powders, sticky liquids, or granular solids.


• Magnetic Float / Magneto strictive: Float travels with level; highly accurate for stable liquids with both local and remote indication.


• Differential Pressure (DP): Measures pressure difference for level, suitable for closed vessels and interface applications.


• Others (Optical, Conductive, Vibrating Fork, Laser): Typically for point detection or niche applications.

2. KEY SELECTION FACTORS

• Process Medium

• Is it liquid, slurry, solids, foam, corrosive, conductive?

  • Radar/GWR excels with foam or vapor.

  • Capacitance handles powders.

  • Hydrostatic works well for clear liquids.


• Measurement Range

• Ultrasonic: up to ~10–15 m

• Radar: 30 m+ for large tanks/silos

• Hydrostatic: up to ~10 m in pressurized contexts


• Accuracy & Repeatability

• Radar/GWR: ±2 mm or better

• Ultrasonic/hydrostatic: sufficient for general use


• Environmental Conditions

• Extreme temperature or pressure → radar/GWR

• Dust, corrosion, or outdoor use → IP67+, radar preferred


• Installation Constraints

• Tank shape, obstructions, mounting orientation matter

  • Radar focuses narrow beam; ultrasonic needs clear vertical path


• Signal Output & Communication

• Standard: 4–20 mA

• Smart: HART, Modbus, Profibus, wireless options available


• Maintenance & Calibration

• Ultrasonic may require cleaning; hydrostatic may need recalibration

• Radar/GWR generally low maintenance


• Compliance & Certifications

• ATEX, IECEx for hazardous zones

• FDA, SIL as required

• Cost vs. Performance

• Hydrostatic/ultrasonic are budget-friendly

• Radar/GWR costlier, but worth it for critical applications.

3. PRACTICAL SELECTION FLOW (CHECKLIST)

A step-by-step thought-map:

1. Identify the medium type.

2. Measure system height and environment.

3. Define required accuracy.

4. Choose suitable technology.

5. Ensure mounting and wiring compatibility.

6. Pick outputs and communication protocols.

7. Verify compliance and certifications.

8. Check long-term cost of ownership.



4. VISUAL EXPLANATIONS

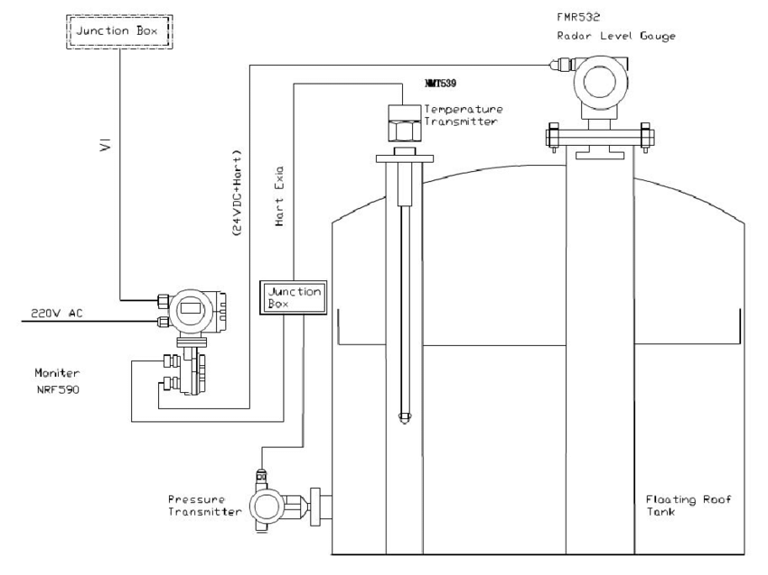

• Radar installation: visualized in the first image—shows beam path inside a tank.

• Magnetic float mechanism: second image—float movement along guide tube.

• Ultrasonic wiring & mounting: third image—ideal vertical alignment and wiring best practices.

• DP transmitter setup: fourth image—pressure connections and tank integration.

5. REAL-WORLD EXAMPLES & MISTAKES TO AVOID

• Example: Manufacturing plant installed radar transmitter to accurately measure foam-prone liquids—improved reliability.

• Common Pitfalls:

  • Using ultrasonic in foamy environments → inaccurate readings

  • Choosing incorrect range → poor resolution or overrange

  • Ignoring material compatibility → premature sensor failure

6. CONCLUSION

Choosing the right level transmitter involves balancing accuracy, environment, maintenance, and cost. Focus on the type of medium, application conditions, and integration needs to make the best decision.
