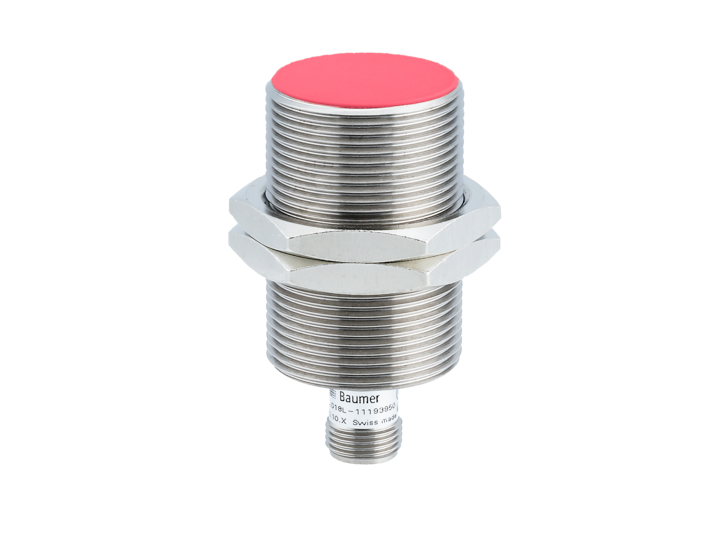

Inductive proximity switch IGYX 30P17B3/S14L

General data

Mounting type

• Flush

Nominal sensing distance Sn

• 15 mm

Assured sensing distance Sa

• 12 mm

Temperature drift

• ± 10 % of Sr (0 ... +60 °C)

Hysteresis

• 3 … 20 % of Sr

Output indicator

• 3 port LED red

Electrical data

Switching frequency

• 400 Hz

Voltage supply range +Vs

• 10 … 30 VDC

Current consumption max. (no load)

• 15 mA

Output circuit

• PNP make function (NO)

Voltage drop Vd

• <2.5 VDC

Output current

• 200 mA

Short circuit protection

• Yes

Reverse polarity protection

• Yes

Mechanical data

Design

• Cylindrical threaded

Material (sensing face)

• PBT, red

Housing material

• Brass nickel plated

Dimension

• 30 mm

Housing length

• 60 mm

Connection types

• Connector M12

Tightening torque max.

• 60 Nm

Ambient conditions

Operating temperature

• -25 … +75 °C

Protection class

• IP 67
