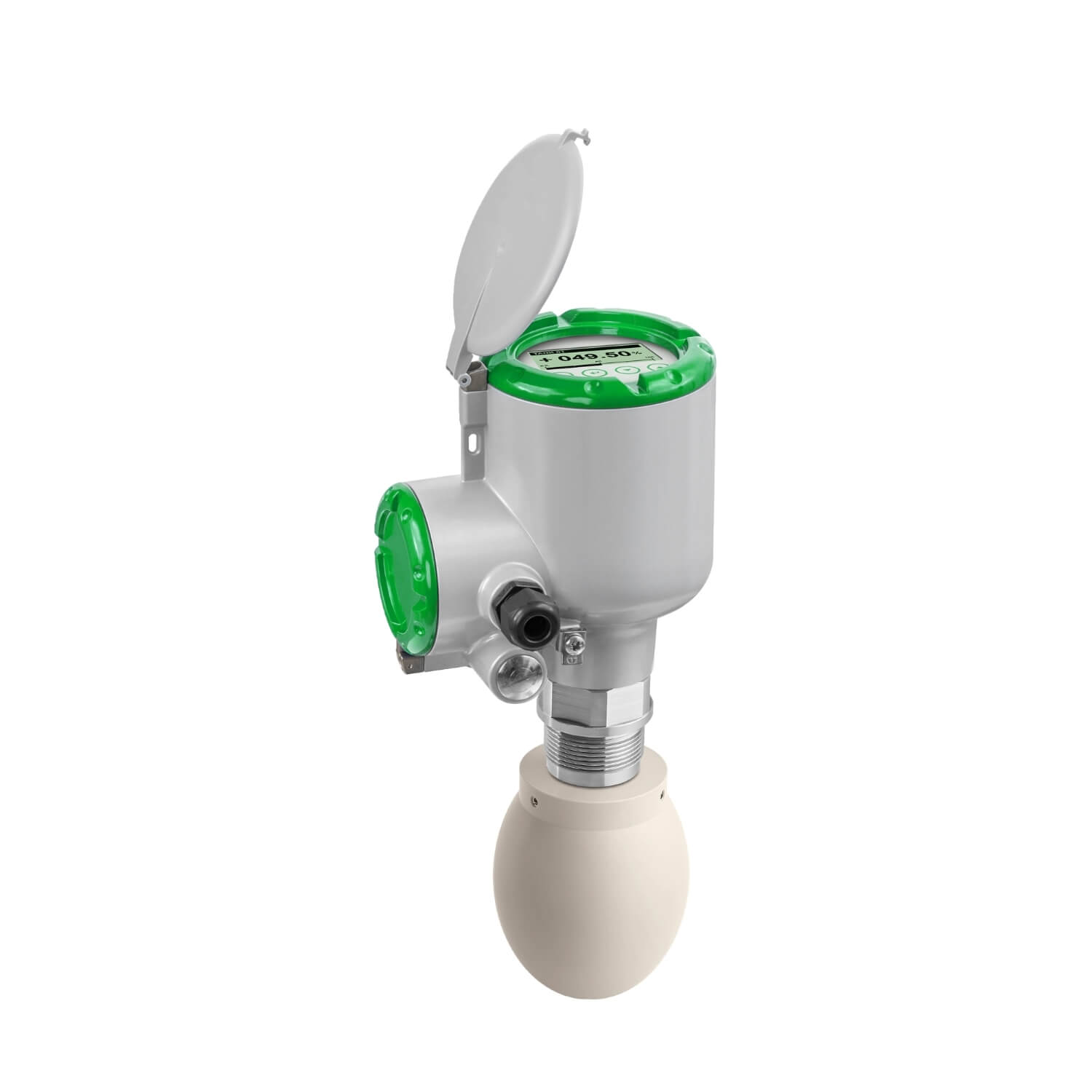

Level Radar LR54

schneider

$2927.00$2342.00

	Main
Range of product	Level
Product or component type	Level transmitter
Product specific application	For liquids in basic process applications
[Us] rated supply voltage	12...30 V DC 16...36 V DC
Kit composition	transmitter antenna

	Complementary
Antenna type	Metallic horn PP drop
Housing material	Aluminium 316L stainless steel
Pressure rating	-1…16 bar -100.0…1599.6 kPa
Safety level	SIL 2 SIL 3
Communication port protocol	HART, 4...20 mA
Display type	LCD display
Measurement accuracy	+/- 2 mm
Measurement range	0...100 m 0...328 ft
Type of measurement	Radar K-band frequency 24 GHz
Connector type	DIN flange ASME flange JIS flange ISO thread ASME thread

	Environment
Ambient air temperature for operation	-50…130 °C -58…266 °F
Ambient air temperature for storage	-40…80 °C -40…176 °F
Product certifications	IEC-Ex ATEX NEPSI CQPSus CRN
Standards	EN/IEC 61508 NACE
IP degree of protection	IP66 IP68
NEMA degree of protection	NEMA 4X housing NEMA 6P antenna
