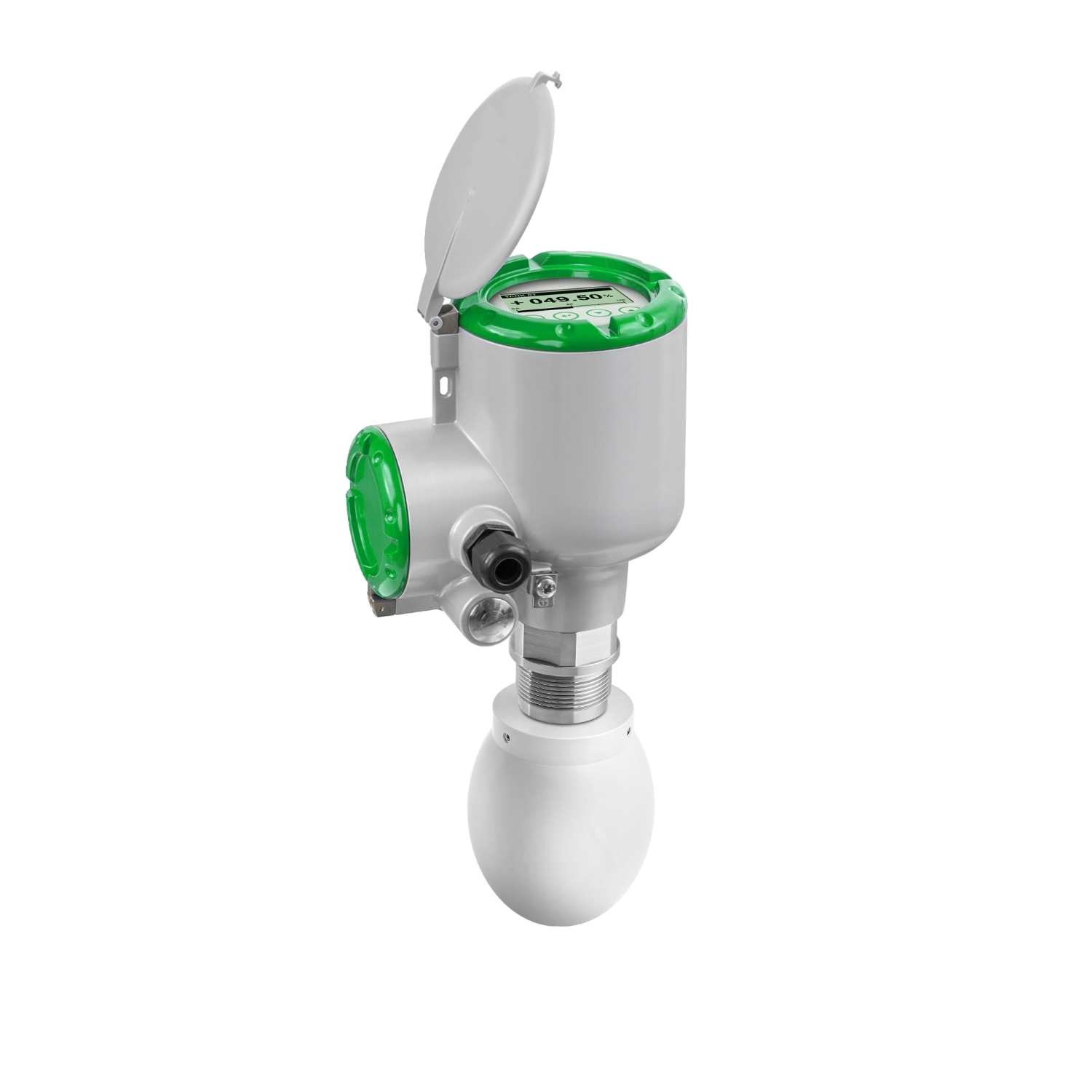

Level Radar LR64
schneider
$2927.00$2517.00
Main | |
Range of product | Level |
|---|---|
Product or component type | Level transmitter |
Product specific application | For solids from granulates to rocks |
[Us] rated supply voltage | 12...30 V DC |
User language | Multi-language |
Kit composition | transmitter |
Complementary | |
Antenna type | Metallic horn |
|---|---|
Housing material | Aluminium |
Pressure rating | -1…16 bar |
Safety level | SIL 2 |
Communication port protocol | HART, 4...20 mA |
Display type | LCD display |
Measurement accuracy | +/- 2 mm |
Measurement range | 0...100 m |
Type of measurement | Radar K-band frequency 24 GHz |
Connector type | DIN flange |
Environment | |
Ambient air temperature for operation | -50…130 °C |
|---|---|
Ambient air temperature for storage | -40…80 °C |
Product certifications | IEC-Ex |
Standards | EN/IEC 61508 |
IP degree of protection | IP66 |
NEMA degree of protection | NEMA 4X housing |
