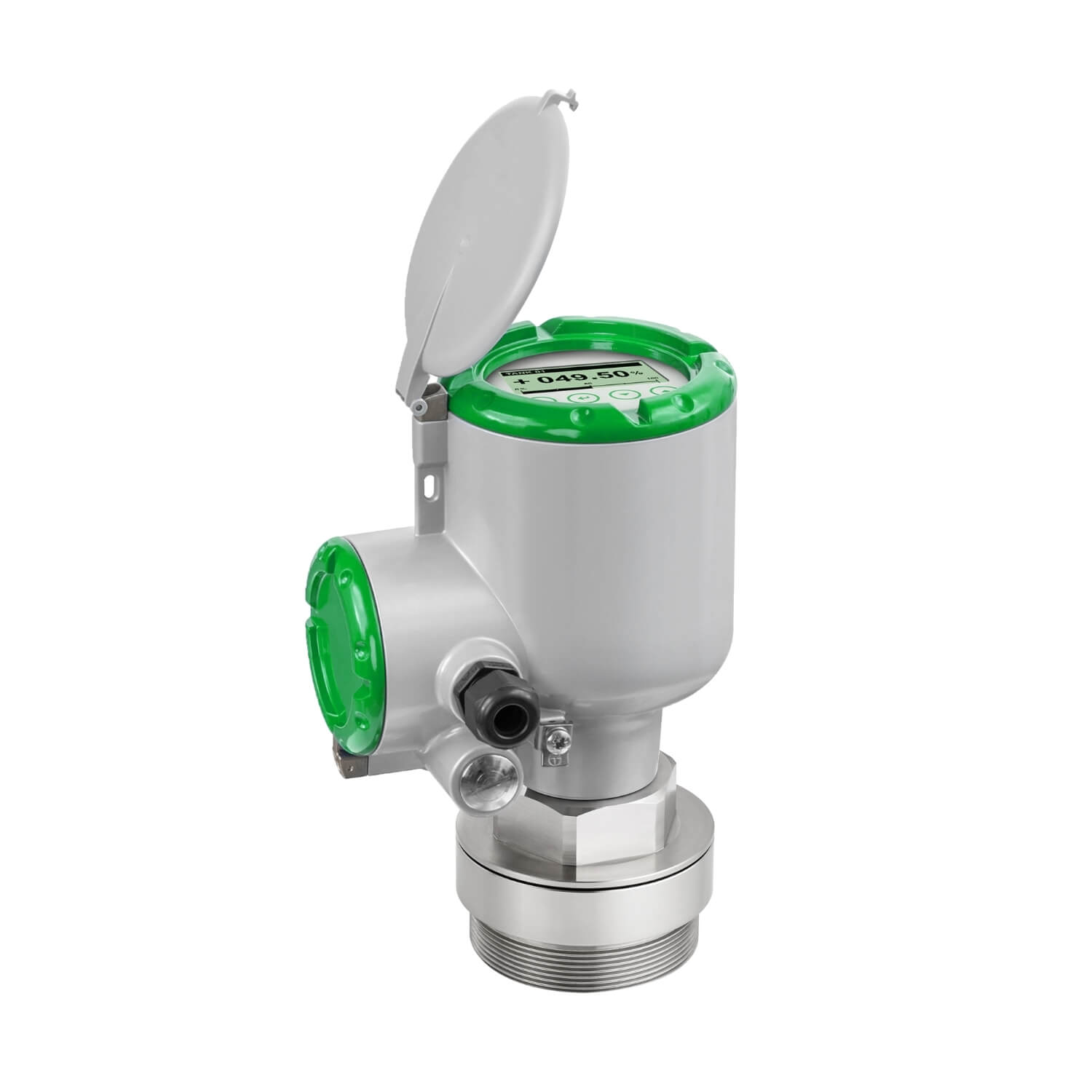

Level Radar LR65

schneider

$3044.00$2576.00

	Main
Range of Product	Level
Product or Component Type	Level transmitter
Product Specific Application	For powders and dusty atmosphere
[Us] rated supply voltage	12...30 V DC 16...36 V DC
Kit composition	transmitter antenna

	Complementary
Antenna type	PEEK lens
Housing material	Aluminium 316L stainless steel
Pressure Rating	-14.5…580.2 psi (-1…40 bar) -14.5…580 psi (-100.0…3999.0 kPa)
Safety level	SIL 2 SIL 3
Communication port protocol	HART, 4...20 mA
Display Type	LCD display
Measurement accuracy	+/- 2 mm
Measurement range	0...100 m 0...328 ft
Type of measurement	Radar W-band frequency 80 GHz
Connector type	DIN flange ASME flange JIS flange ISO thread ASME thread

	Environment
Ambient air temperature for operation	-58…392 °F (-50…200 °C) -50…200 °C (-58…392 °F)
Ambient Air Temperature for Storage	-40…176 °F (-40…80 °C) -40…80 °C (-40…176 °F)
Product certifications	IEC-Ex ATEX NEPSI CQPSus
Standards	EN/IEC 61508 NACE
IP Degree of Protection	IP66 IP68
NEMA degree of protection	NEMA 4X housing NEMA 6P antenna
