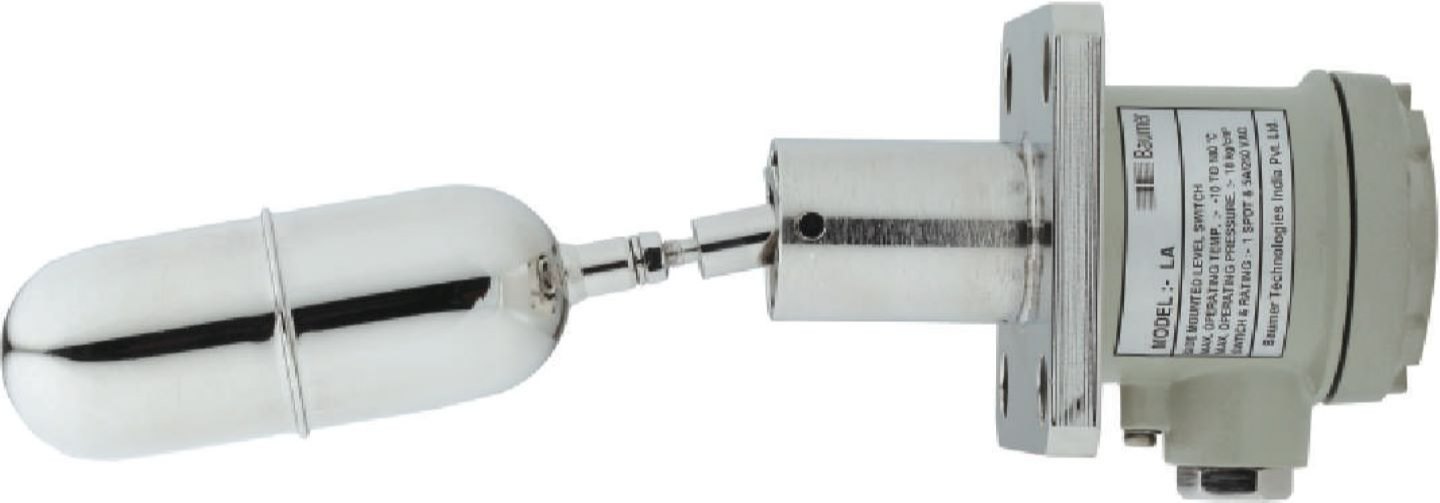

Level Switch Float Type
Baumer
$65.00$58.00
Specifications:
Housing material : Die Cast Aluminum
Ingress protection : IP 65
Process connection : 92 mm PCD Square Flange
Material of wetted parts : AISI 316 SS
Float diameter : 45 mm (48 mm at welded seam)
Insertion depth : 215 mm (Standard)
Cable entry : ½” BSP (F) with ½” BSP (M) Conduit
Switch differential : 15 + 5 mm, 15 - 5 mm
Switch type : Micro Switch
Switch rating : 5 A / 250 VAC
Minimum specific gravity : 0.75
Maximum operating temperature : -10°C to + 180°C
Maximum operating pressure : 18 kg/cm²
Working Principle & Operation:
LA switch is Compact & rugged construction consisting of a free moving float and a switch assembly in non - magnetic material to catch maximum magnetic flux. It includes dual magnets, one carried by the float arm and other by the other assembled in the switch enclosure. A change in liquid level brings the like poles of dual magnets opposite to each other and resulting repulsion force which gives a changeover contacts with snap action.
Special Features
Rugged construction
Easy installation
Easy replacement of electrical assembly
Applications:
Chemical processing equipment
Alarms for hydro-pneumatic tanks
Ship building industry
Water treatment plant
Food
Pharmaceuticals
