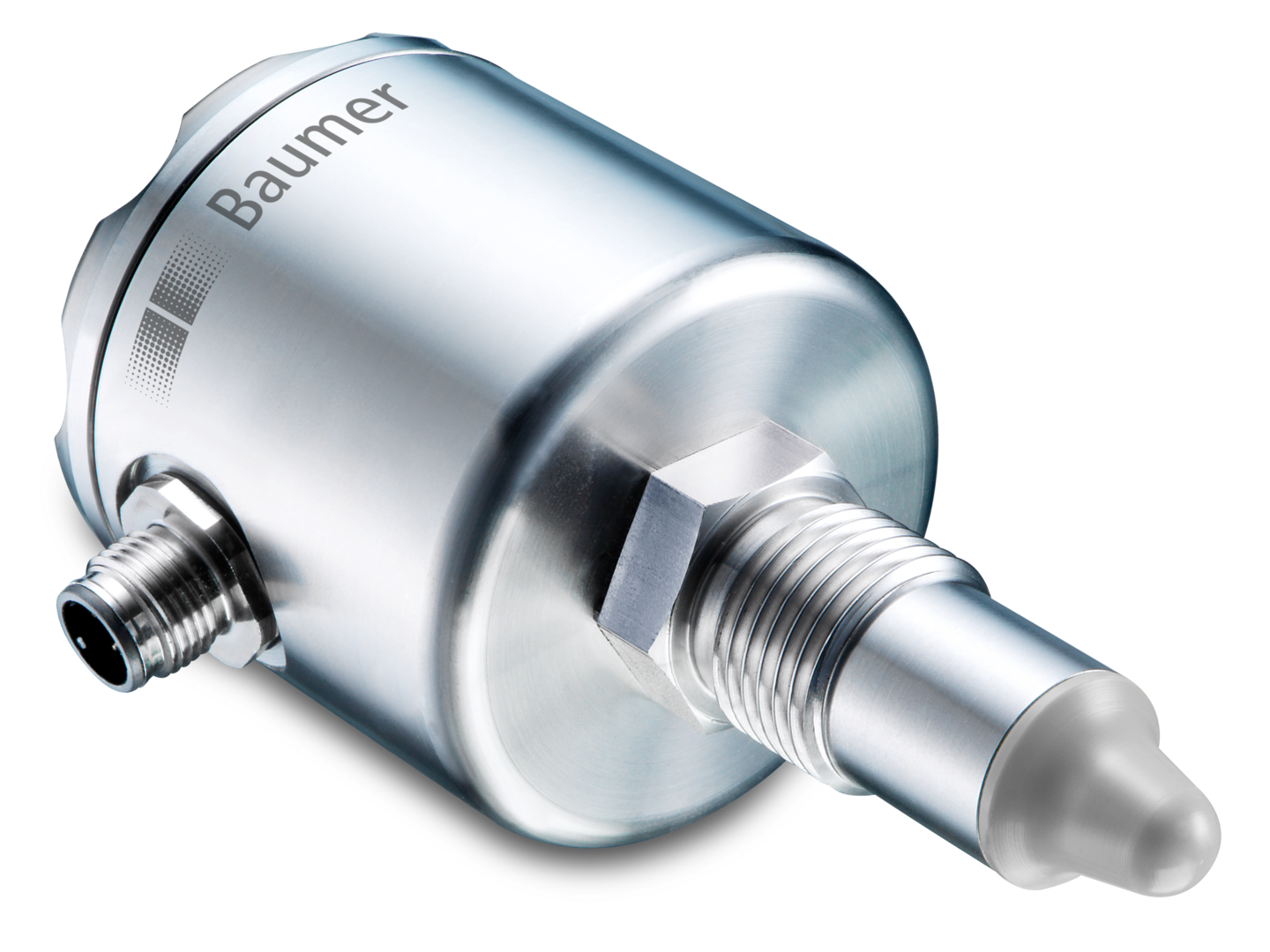

Level switch LFFS

Performance characteristics

Measuring principle

• CleverLevel level switches (Frequency Sweep)

Media characteristics

• DC > 1.5

Hysteresis

• ± 1 mm

Repeatability

• ± 1 mm

Step response time

• 0.1 s , typ.

• 0.2 s , max.

Damping

• 0 … 10 s , adjustable

Process connection

Wetted parts material

• PEEK Natura

• AISI 316L (1.4404)

• EPDM, optional

Surface roughness wetted parts

• Ra ≤ 0.8 µm

Output signal

Output type

• PNP

• NPN

• Digital (push-pull)

Switching logic

• Normally open (NO)

• Normally closed (NC)

• Active high

• Active low
