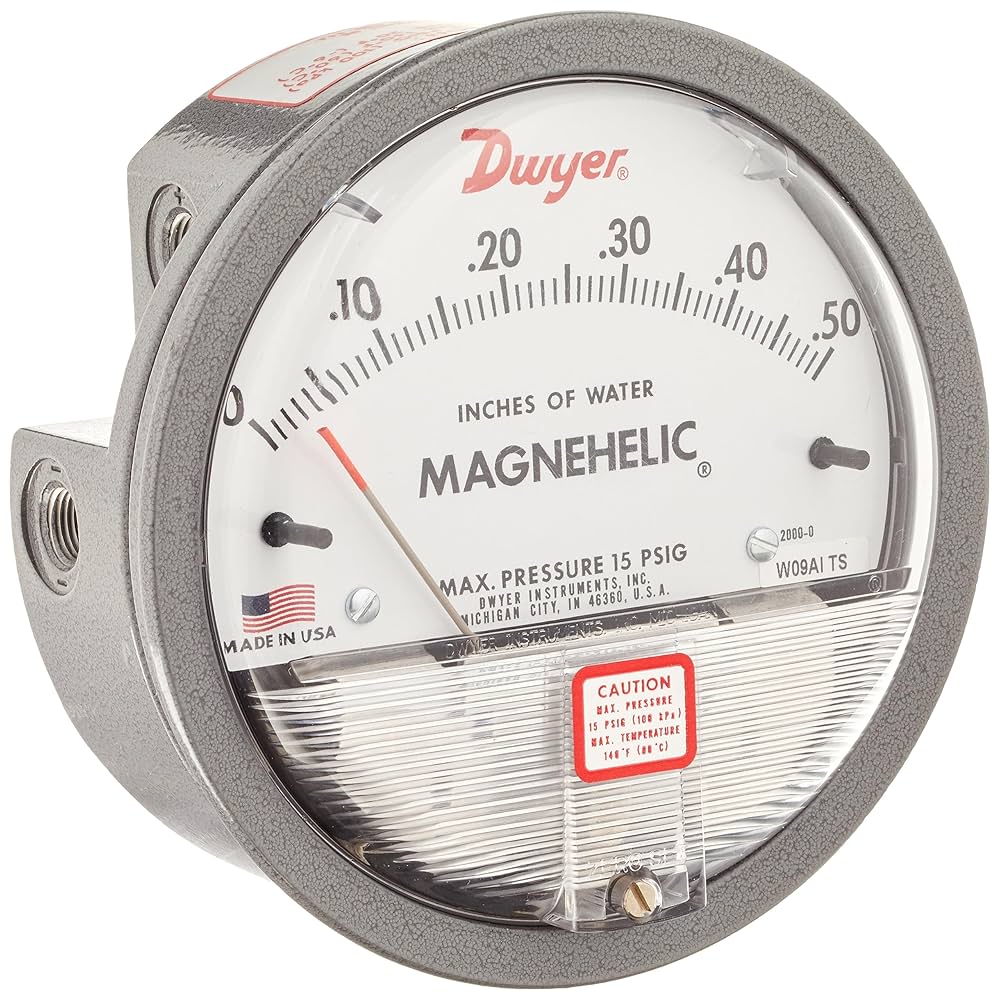

Magnehelic Gauge
Dwyer
$116.00$59.00
Accuracy: ±2% of FS (±3% on -0, -100PA, -125PA, -10MM and ±4% on -00, -60PA, -6MM ranges), throughout range at 70°F (21.1°C).
Size: 4" (101.6 mm) diameter dial face
Temperature Limits: 20 to 140°F.(-6.67 to 60°C).
Pressure Limits: -20 in Hg. to 15 psig. (-0.677 bar to 1.034 bar); MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar)
Process Connection: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back
