MAGNETIC FLOW METER: WORKING, APPLICATIONS, AND CALIBRATION GUIDE
Discover everything about Magnetic Flow Meters (Magmeters) – working principle, advantages, applications, calibration methods, and maintenance tips. Learn how electromagnetic flow meters provide accurate, reliable liquid flow measurement in industries like water treatment, food, chemical, and pharmaceuticals.
INTRODUCTION
In today’s industrial world, accurate measurement of liquid flow is critical for efficiency, safety, and cost control. Among the many types of flow meters available, the Magnetic Flow Meter (Magmeter) stands out as a reliable and maintenance-free option. It is widely used in industries like water treatment, food & beverages, chemical, pharmaceuticals, and mining.
In this blog, we’ll explore:
What is a magnetic flow meter?
How does it work?
Advantages & limitations
Key applications
Calibration & maintenance tips
WHAT IS A MAGNETIC FLOW METER?
A Magnetic Flow Meter is an instrument used to measure the flow rate of conductive liquids. Unlike mechanical flow meters, it has no moving parts, making it highly durable and low maintenance.
HOW DOES A MAGNETIC FLOW METER WORK?

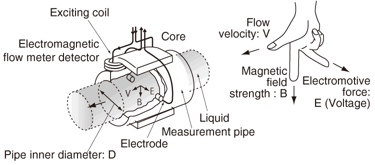

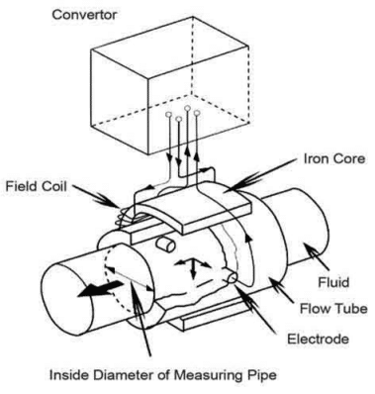

The working principle of a magnetic flow meter is based on Faraday’s Law of Electromagnetic Induction.
When a conductive liquid passes through the meter’s magnetic field, a voltage is induced.
This voltage is directly proportional to the flow velocity.
Electrodes inside the meter detect the voltage and convert it into flow rate.
Key Formula:
E=B×L×VE = B \times L \times VE=B×L×V
Where:
E = Induced Voltage
B = Magnetic Field Strength
L = Distance between electrodes
V = Velocity of liquid
ADVANTAGES OF MAGNETIC FLOW METERS
✅ No moving parts → minimal wear & tear
✅ High accuracy (±0.5%)
✅ Works with corrosive & dirty liquids
✅ Wide range of pipe sizes (DN 10 mm to 3000 mm)
✅ Bi-directional measurement
LIMITATIONS OF MAGNETIC FLOW METERS
⚠️ Only works with conductive liquids (not suitable for hydrocarbons, oils, or gases)
⚠️ Performance affected by air bubbles or non-homogeneous liquids
⚠️ Requires proper grounding for accurate measurement
APPLICATIONS OF MAGNETIC FLOW METERS
Magnetic flow meters are widely used in:

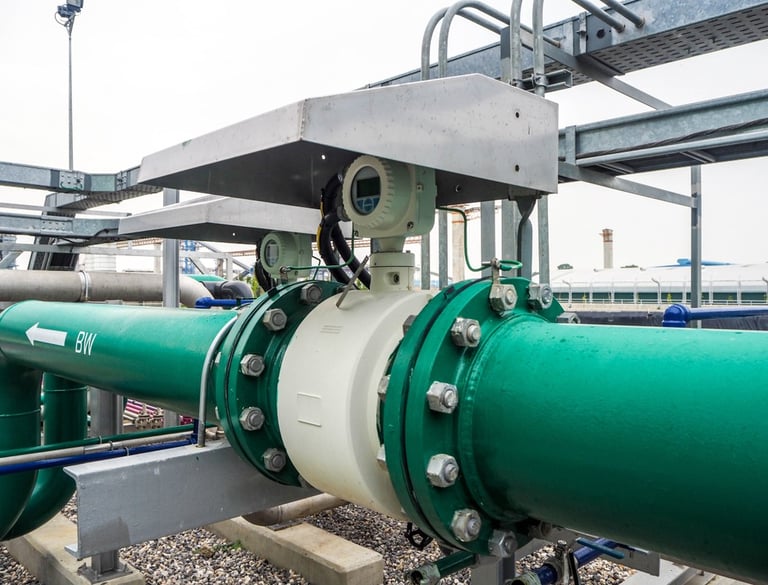

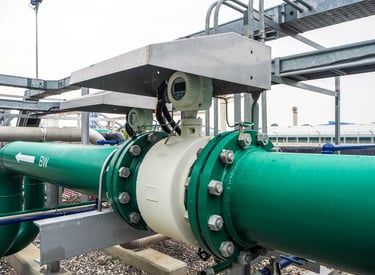

Water & Wastewater Treatment → monitoring sewage, effluent discharge, and drinking water supply
Food & Beverage Industry → measuring milk, juices, and liquid ingredients
Chemical Industry → handling corrosive acids, alkalis, and slurries
Pharmaceutical Industry → hygienic flow measurement for liquid medicines
Mining & Pulp Industry → measuring slurry and abrasive fluids

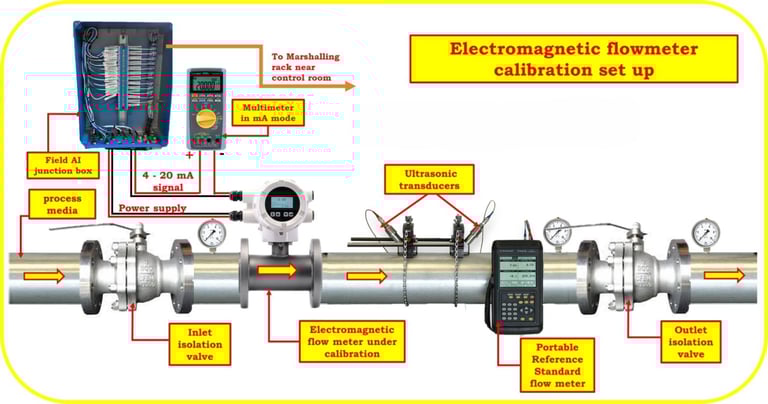

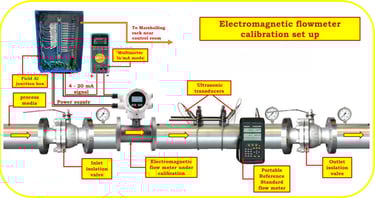

CALIBRATION OF MAGNETIC FLOW METERS
Like all instruments, magmeters require periodic calibration to maintain accuracy.
Steps for Calibration:
Zero Calibration: Ensure no flow condition and set zero point.
Wet Calibration: Compare flow readings with a reference standard using actual liquid.
Dry Calibration: Verify electronics using a calibration rig without fluid.
Data Logging: Record test results for compliance and traceability.
MAINTENANCE TIPS FOR MAGNETIC FLOW METERS
Inspect electrodes periodically for scaling or fouling

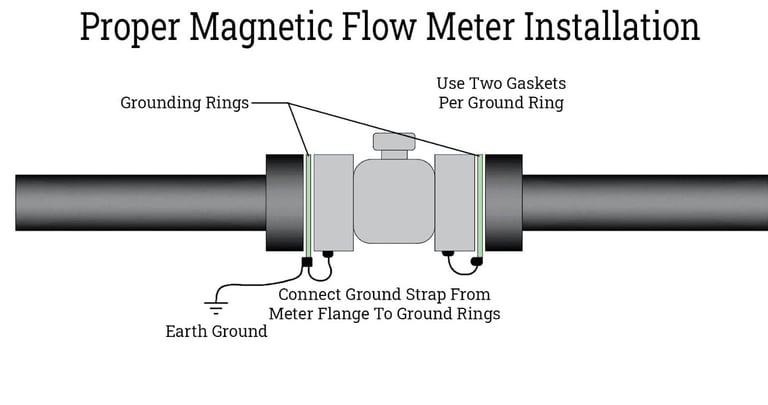

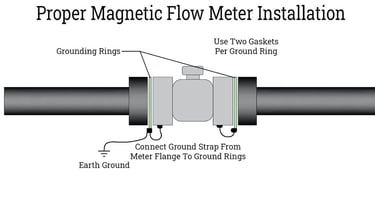

Check grounding and electrical connections
Ensure proper installation (straight pipe lengths before and after meter)
Avoid air pockets in the pipeline
CONCLUSION
The Magnetic Flow Meter is a versatile and dependable solution for industries requiring precise liquid flow measurement. With no moving parts, high accuracy, and long service life, it remains one of the most trusted flow measurement technologies worldwide.
