Magnetic Flowmeter 9700A

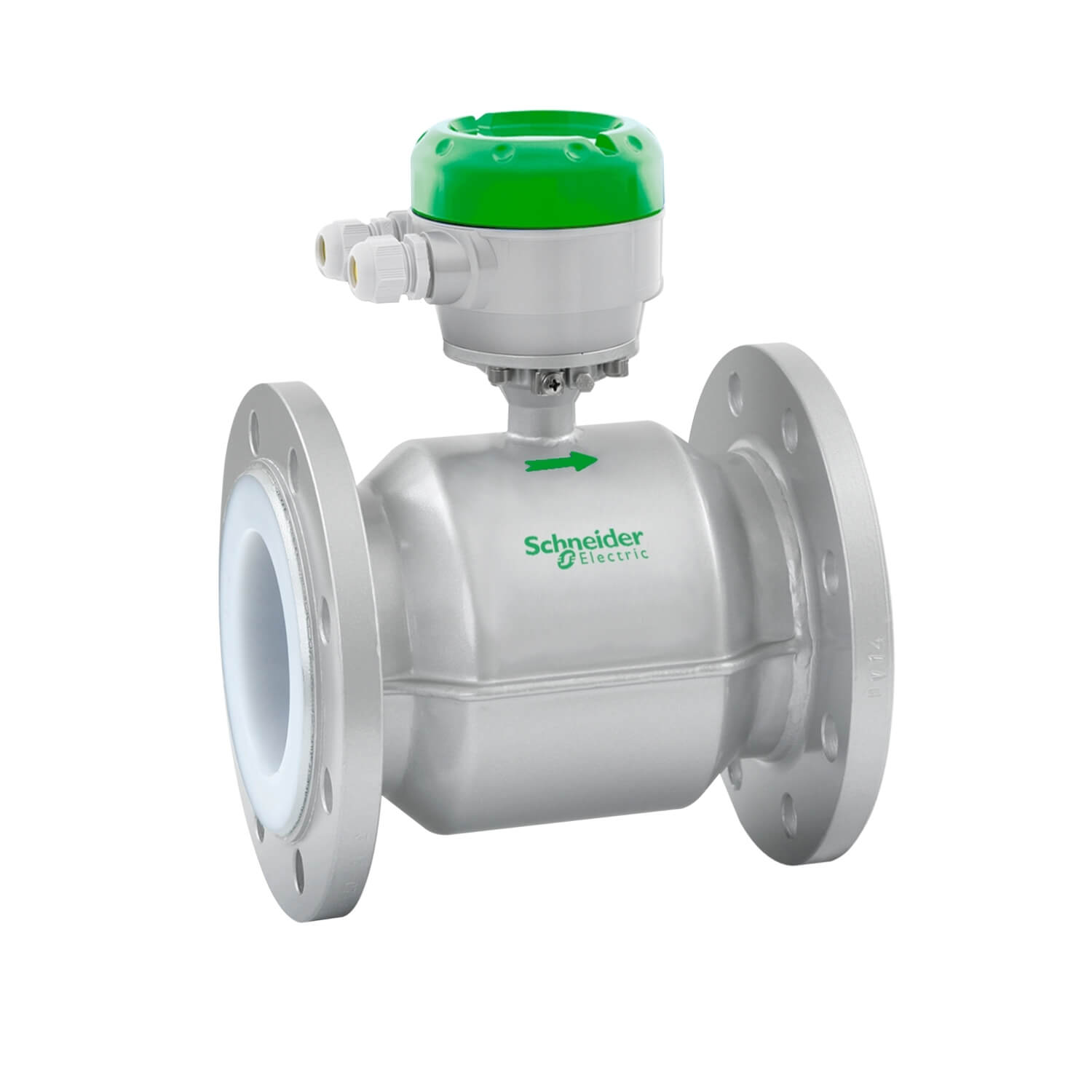

Foxboro Magnetic Flowmeter

$4831.00$4214.00

Range of Product	Flow
Product or Component Type	Magnetic flowmeter transmitter
Device Application	To measure the flow of pressure for liquid, gas, steam
Market Segment	Pharmaceutical Chemical Paper and pulp
Product Specific Application	To measure flow with low conductivity media To measure flow with high solid media To measure flow with entrained air To measure flow with inhomogeneous media To measure flow with abrasive media To measure flow with corrosive media Mining minerals and metals Oil and gas
Device composition	liner PFA (perfluoroalkoxy) liner PTFE (polytetrafluoroethylene) liner ETFE (ethylene tetrafluoroethylene) liner polyurethane electrode hastelloy electrode stainless steel electrode titanium electrode tantalum electrode platinum

Tube diameter	0.4…47.2 in (10…1200 mm) 0.4…78.7 in (10…2000 mm) 0.38…48 in (9.65…1219.2 mm) 0.38…80 in (9.65…2032.0000000000 mm)
Measurement accuracy	+/- 0.3 % of reading with IMT31A +/- 0.2 % of reading with IMT33A +/- 0.5 % of reading with IMT30A
Drift of the sensitivity	+/- 0.01 %
Name of test	Vibration Shocks
Mounting support	Flange conforming to EN 1092-1 Flange conforming to ASME B16.5 Flange conforming to JIS
Mounting location	Wall mounting (with IMT30A) Wall mounting (with IMT31A) Field mounting (with IMT33A)

Ambient air temperature for operation	-40…356 °F (-40…180 °C) with PFA or PTFE liner for remote -40…284 °F (-40…140 °C) with PFA or PTFE liner for IMT33A -40…248 °F (-40…120 °C) with PFA or PTFE liner for IMT30A -40…248 °F (-40…120 °C) with PFA or PTFE liner for IMT31A 23…176 °F (-5…80 °C) with hard rubber liner 23…140 °F (-5…60 °C) with soft rubber liner 23…149 °F (-5…65 °C) with polyurethane liner
Product Certifications	CE ATEX FM CSA IECEx NEPSI
Standards	IEC 60529
