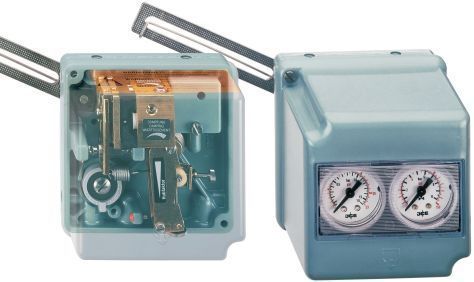

Pneumatic Positioner SRP981

FEATURES

• Independent adjustment of stroke range and zero

• Adjustable amplification and damping

• Split range up to 4-fold possible

• Supply pressure up to 6 bar (90 psig)

• Low vibration effect in all directions

• Mounting according to IEC 534, part 6 (NAMUR)

• Rotation adapter for angles up to 120 °

• Ambient temperature –40 to 80 °C (–40 to 176 °F)

• Travel 8 to 100 mm (0.3 to 4 in)

• Angular range 30 ° to 120 °

• Modular system of additional equipment - Electrical limit switches - Electrical position transmitter - Booster - Connection manifold • Protection class IP54 (IP 65 on request)

• Certificate No. 90/20226(E2) Lloyd’s Register of Shipping for use on vessels

• Explosion protection - pn. basic device: ATEX II 2 G c IIC T6 constructive design - el. additional built-in equipment: ATEX II 2 G EEx ib/ia IIB/IIC T4/T6 CU TR explosion protection
