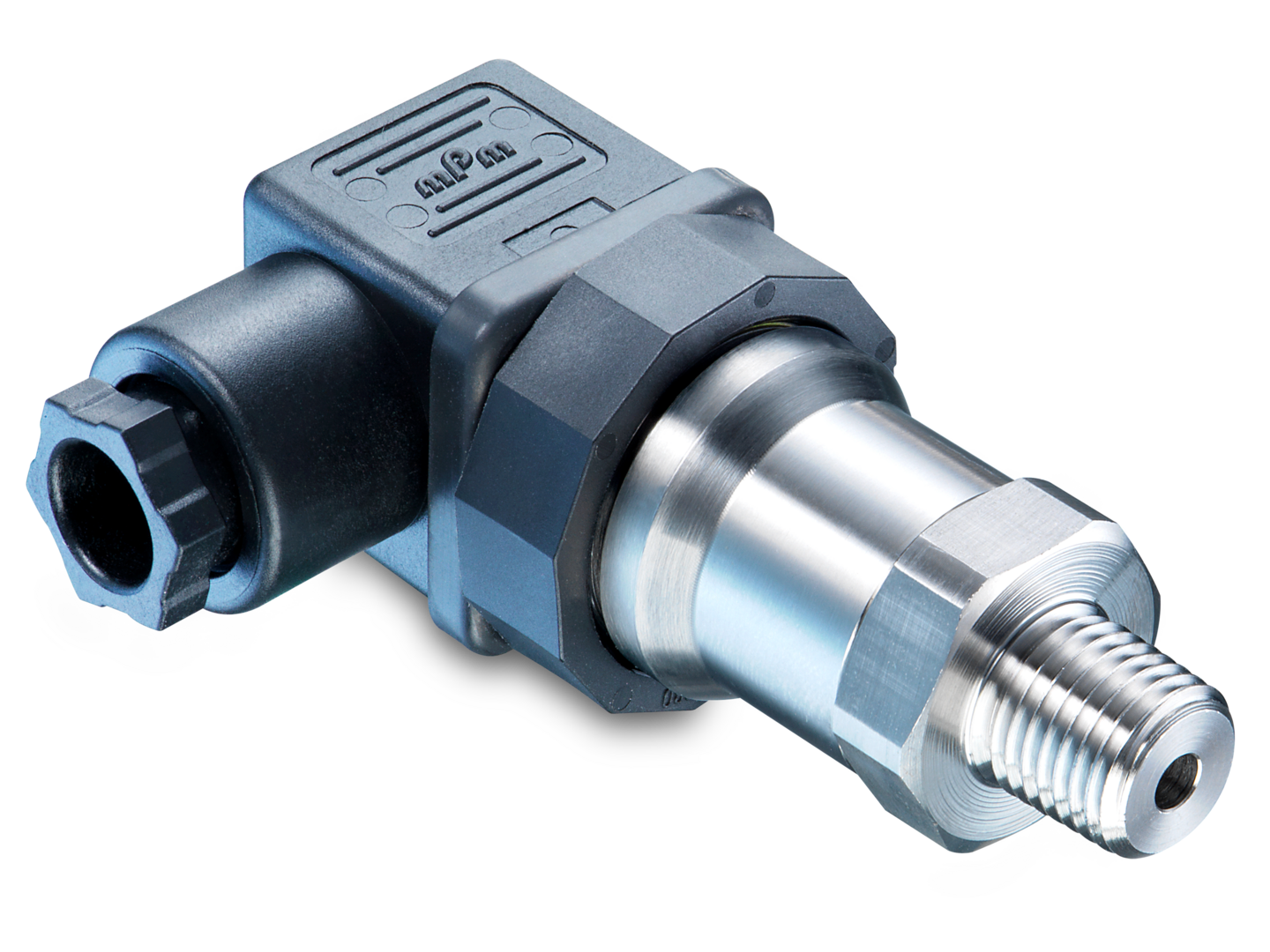

Pressure Sensor CTX

Pressure sensor for general air and gas applications - stainless steel

• Relative pressure measurement from -1 to 200 bar

• Robust ceramic measuring cell

• Stainless steel housing

• Compact design

• Relative pressure and vacuum measurement

Performance characteristics

Measuring range

• -1 … 200 bar

Min. measuring span

• 1.0 bar

Max. measuring span

• 200 bar

Pressure type

• Relative (gauged)

Standard error of measurement (BFSL)

• ± 0.5 % FSR

• Including non-linearity, hysteresis and non-repeatability according BFSL

Max. measuring error

• ± 2.5 % FSR

• Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)

Temperature coefficient

• ≤ 0.15 % FSR/10 K , measuring span

• ≤ 0.25 % FSR/10 K , zero point

Compensated temperature range

• -10 … 55 °C

Long term stability

• ≤ 0.3 % FSR/a

Rise time (10 ... 90 %)

• ≤ 5 ms
