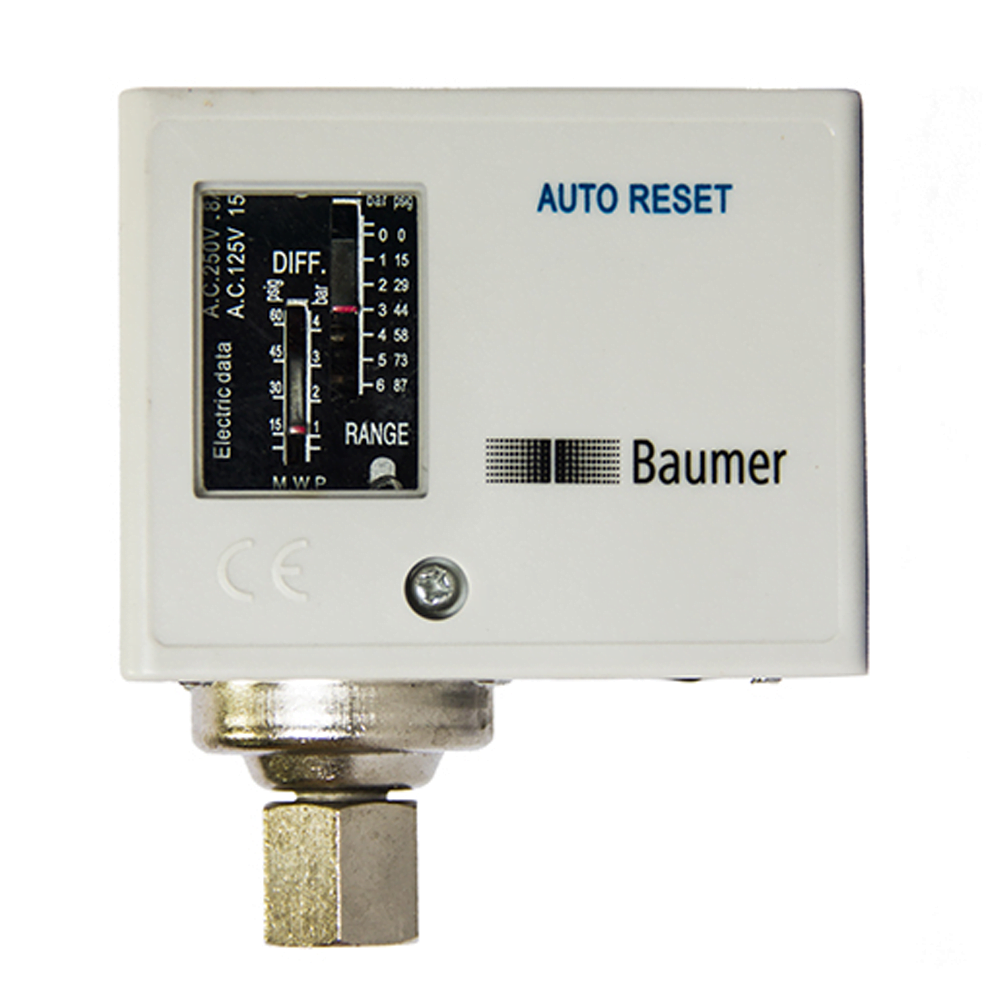

Pressure Switch UT6
Baumer
$18.00$14.00
Manufacturer | Baumer |
|---|---|
Model No | UT6 |
Measuring Parameters | Pressure |
Measuring Range | 0 to 6 bar |
Accuracy | ±5% F.S |
Differential | Adjustable |
Repeatability | ±2% F.S. |
Scale Unit | bar with psi |
Mounting | Bottom/Panel |
Mounting Accessories | Mounting bracket with screws |
Process Connection | 1/4” BSP (F) |
Enclosure | IP 32 |
Enclosure Material | Steel (plated) with plastic cover |
Maximum Process Temperature | 100 °C |
Ambient Temperature | -10 to 60 °C |
Switch | 1 SPDT |
Switch Rating | 15 A, 220 VAC & 10 A, 24 VDC |
Sensing Element | Phosphor bronze bellows |
Medium | Air, Oil & Water |
Weight | 250 Grams |
