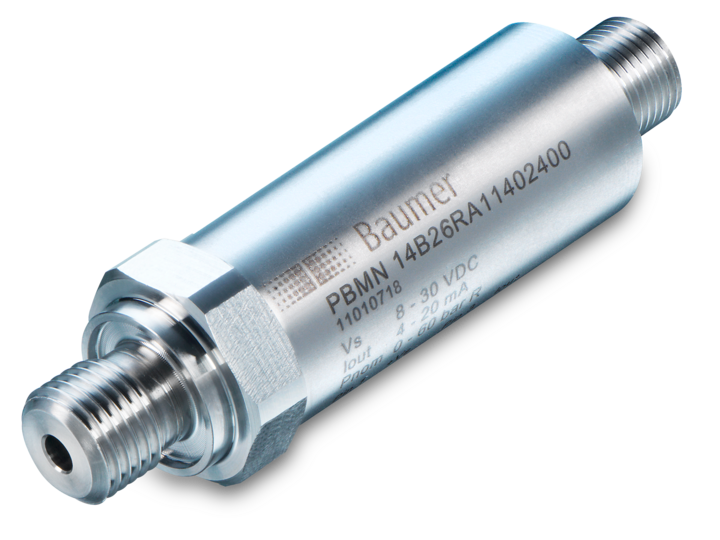

Pressure Transmitter PBMN

Measuring range

• 0 … 1600 bar

Min. measuring span

• 60 bar

Max. measuring span

• 1600 bar

Pressure type

• Relative (gauged)

Standard error of measurement (BFSL)

• 0.04 % FSR

• 0.1 % FSR

• Including non-linearity, hysteresis and non-repeatability according BFSL

• For turndown, multiply this value by the applied turndown ratio

Max. measuring error

• ± 0.1 % FSR

• ± 0.25 % FSR

• Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)

• For turndown, multiply this value by the applied turndown ratio

Temperature coefficient

• ≤ 0.03 % FSR/10 K , measuring span

• ≤ 0.03 % FSR/10 K , zero point

Compensated temperature range

• -40 … 85 °C

Long term stability

• ≤ 0.1 % FSR/a

Max. turndown ratio

• 5 : 1

Rise time (10 ... 90 %)

• ≤ 5 ms

  Process connection

Connection variants

• Refer to section "Dimensional drawings"

Wetted parts material

• AISI 304 (1.4301)

Wetted parts material, membrane

• AISI 630 (1.4542)

  Compliance and approvals

Explosion protection

• ATEX II 1/2G Ex ia IIC T4/T6 Ga/Gb

• ATEX II 1D Ex ia IIIC T (200) 107 °C IP6X Da

• ATEX II 1G Ex ia IIC T4/T6 Ga
