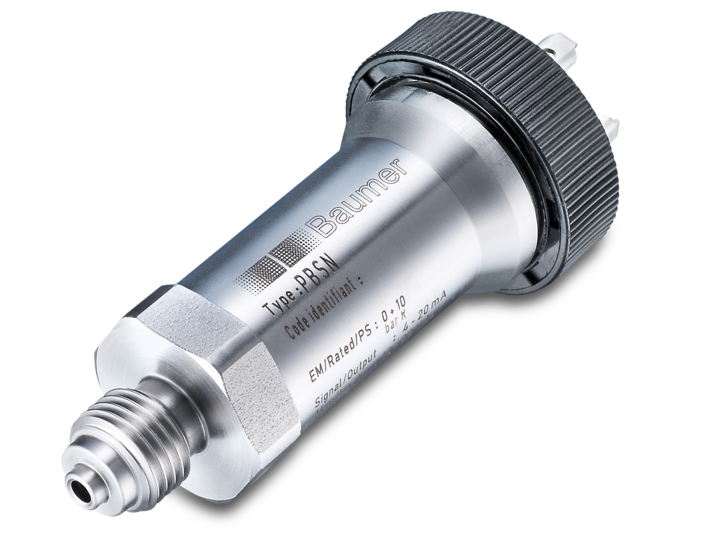

Pressure Transmitter PBSN

PERFORMANCE CHARACTERISTICS

Measuring range

• -1 … 400 bar

Min. measuring span

• 1.0 bar

Max. measuring span

• 400 bar

Pressure type

• Absolute

• Relative (gauged)

Standard error of measurement (BFSL)

• ± 0.3 % FSR , available for measuring spans > 1 bar

• ± 0.4 % FSR

• Including non-linearity, hysteresis and non-repeatability according BFSL

Max. measuring error

• ± 0.5 % FSR , available for measuring spans > 1 bar

• ± 1 % FSR Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)

Temperature coefficient

• ≤ 0.08 % FSR/10 K , measuring span

• ≤ 0.08 % FSR/10 K , zero point

Compensated temperature range

• -20 … 60 °C

Long term stability

• ≤ 0.2 % FSR/a

Rise time (10 ... 90 %)

• ≤ 5 ms
