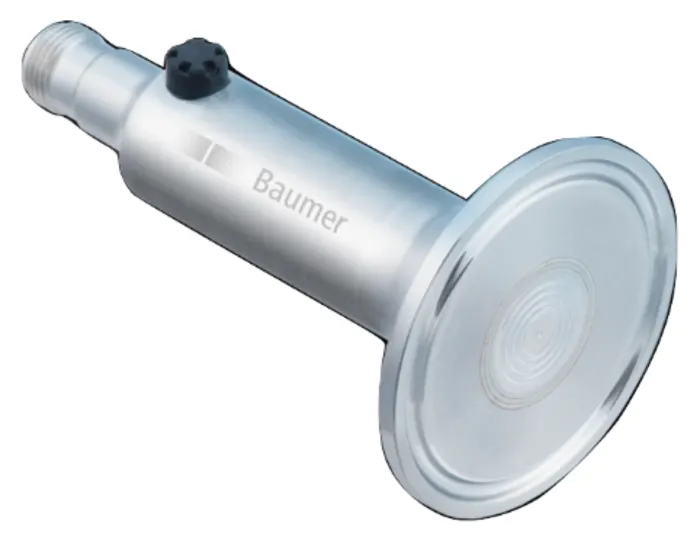

Pressure Transmitter PP20H
Baumer
$240.00$234.00
Performance Characteristics
Measuring range
-1 … 40 bar
Min. measuring span
0.4 bar
Max. measuring span
40 bar
Pressure type
Absolute
Relative (gauged)
Standard error of measurement (BFSL)
± 0.2 % FSR
± 0.5 % FSR , 0 … 0.4 bar
Including non-linearity, hysteresis and non-repeatability according BFSL
Max. measuring error
± 0.5 % FSR
± 1.0 % FSR , 0 … 0.4 bar
Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)
Temperature coefficient
≤ 0.2 % FSR/10 K , measuring span
≤ 0.2 % FSR/10 K , zero point
Compensated temperature range
-20 … 125 °C
Long term stability
≤ 0.2 % FSR/a
Rise time (10 ... 90 %)
≤ 20 ms
Process connection
Connection variants
G 1 A hygienic
G 1/2 A DIN 3852-E
G 1/2 A hygienic
ISO 2852 (Tri-Clamp), DN 25, Ø 50.5 (BCID: C03)
ISO 2852 (Tri-Clamp), DN 40; 51, Ø 64.0
Varivent® DN 25; 1" (Type F), Ø 50
Varivent® DN 32 … 125; 1 1/2" … 6" (Type N), Ø 68
DIN 11851, DN 40
DIN 11851, DN 50
DIN 11864-1-A (aseptic screwed union), DN40
DIN 11864-1-A (aseptic screwed union), DN50
Wetted parts material
AISI 316L (1.4404)
Wetted parts material, membrane
AISI 316L (1.4435)
IO-Link interface
IO-Link version
1.1
Device profile
Smart Sensor Profile
IO-Link port type
Class A
Baud rate
38,4 kbaud (COM2)
SIO-mode
Yes
Process data (cyclic)
Pressure or temperature
Switch state
State of alert
Scaling factor
Diagnostic data (acyclic)
Ambient pressure
CPU temperature
Unit temperature
Operation time (since power-on)
Adjustable data (acyclic)
Offset settings
Switch parameters
Measuring mode
Dual Channel
IO-Link / Analogue
Analogue / SIO Mode
