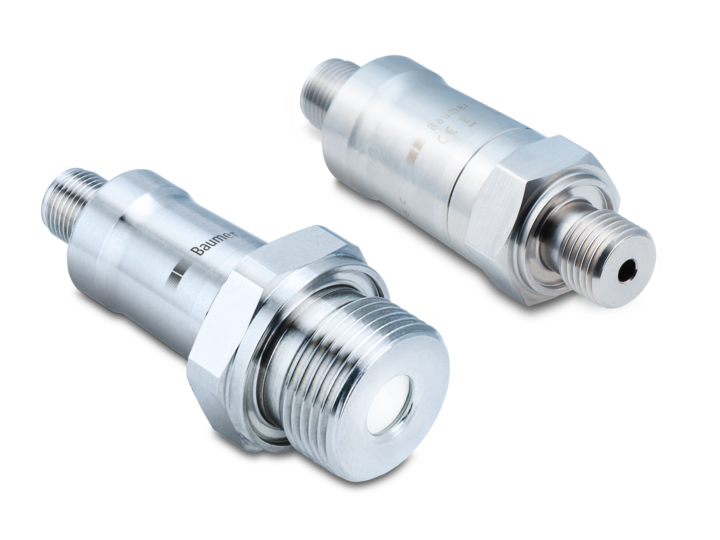

Pressure Transmitter PP20S

Performance Characteristics

Measuring range

• -1 … 400 bar

Min. measuring span

• 0.25 bar

Max. measuring span

• 400 bar

Pressure type

• Relative (gauged)

Standard error of measurement (BFSL)

• ± 0.12 % FSR

• ± 0.2 % FSR

• ± 0.4 % FSR

• ± 1.2 % FSR

• Including non-linearity, hysteresis and non-repeatability according BFSL

Max. measuring error

• ± 0.3 % FSR

• ± 0.5 % FSR

• ± 1.0 % FSR

• ± 3.0 % FSR

• Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2)

Temperature coefficient

• ≤ 0.05 % FSR/10 K , measuring span

• ≤ 0.05 % FSR/10 K , zero point

Compensated temperature range

• -10 … 60 °C

Long term stability

• ≤ 0.2 % FSR/a

Max. turndown ratio

• 5 : 1

Step response time

• < 3 ms

Power-up time

• < 50 ms

  Process connection

Connection variants

• Refer to section "Dimensional drawings"

Wetted parts material

• AISI 304 (1.4301)

• AISI 316L (1.4404)

• Ceramic, 96% AL2O3

• NBR, optional

• EPDM, optional

• FKM, optional, gaskets require a minimum ambient temperature of -20 °C and a minimum medium temperature of -25 °C

• FVMQ, optional
