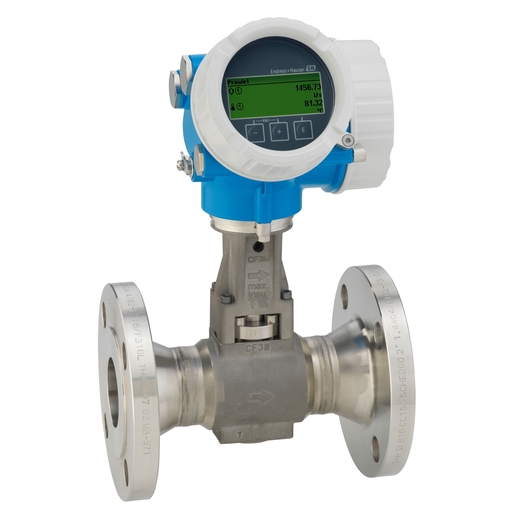

Proline Prowirl F 200 Vortex Flowmeter

• Measures volume flow, mass flow, energy flow,
  heat flow difference, and temperature

• DN 25 to 300 (1 to 12in) nominal diameter range
  for wet steam

• Accuracy:
  Up to ±0.65% volume flow
  Up to ±0.85% mass flow

• Consistent accuracy down to Re 10,000

• PN 100, Class 600, 20K maximum process pressure

• Medium temperature range:
  –40 to 500° F (–40 to 260° C) standard
  –328 to 752° F (–200 to 400° C) optional

• Inlet run compensation

• HART, PROFIBUS PA, FOUNDATION Fieldbus

• IP66/67, type 4X enclosure

• ATEX, IECEx, cCSAus, JPN, EAC

• 4‐line backlit display with touch control

Description

The E+H Proline Prowirl F 200 vortex flow meter offers the preferred measuring principle for wet, saturated or superheated steam, gases and liquids. The meter features a robust, drift-free capacitive sensor for long-term stability, and a separate connection compartment for convenient device wiring. With genuine loop-powered technology, the F 200 enables cost-effective and seamless integration into existing infrastructures. Integrated verification with Heartbeat technology ensures process safety at all times. The Prowirl F 200 also features flexible positioning of the pressure cell, an industrial siphon design for pressure measurement, and a display module with data transfer function.
