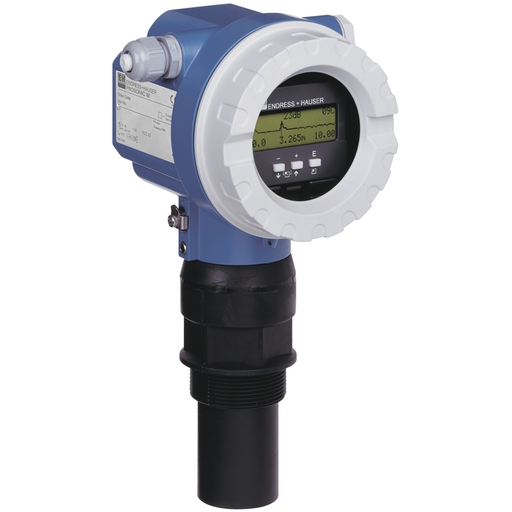

Prosonic FMU40
Endress+Hauser
$761.00$644.00
Measuring principle
Ultrasonic
Characteristic / Application
Compact ultrasonic transmitter
Supply / Communication
2-wire HART
Accuracy
+/- 2 mm or +/- 0.2 % of set measuring range
Ambient temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)Process temperature
-40 °C ... 80 °C
(-40 °F ... 176 °F)Process pressure / max. overpressure limit
0.7 bar ... 3 bar abs
(10 psi ... 44 psi)Main wetted parts
PVDF
Process connection
G / NPT 1 1/2"
Blocking distance
0.25 m (0.8 ft)
Max. measurement distance
Liquids: 5 m (16 ft),
Solids: 2 m (6.6 ft)Communication
4...20 mA HART
Certificates / Approvals
ATEX, FM, CSA, IEC, INMETRO, NEPSI
Application limits
For higher resistance:
FMU42/FDU9x
Foam / high turbulence possible:
FMU41/FDU91
Fast filling and discharging rate:
FMU90 + FDU9x
Level limit detection:
FMU90 + FDU9x
