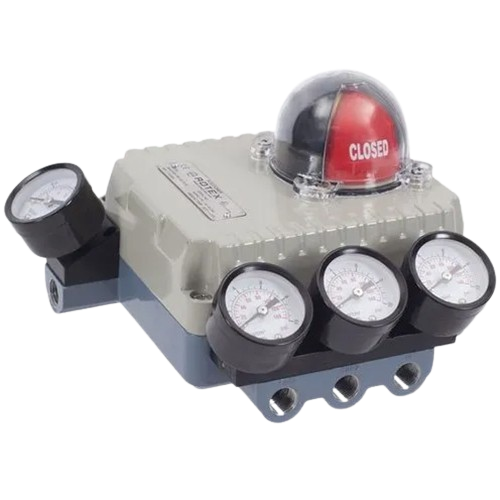

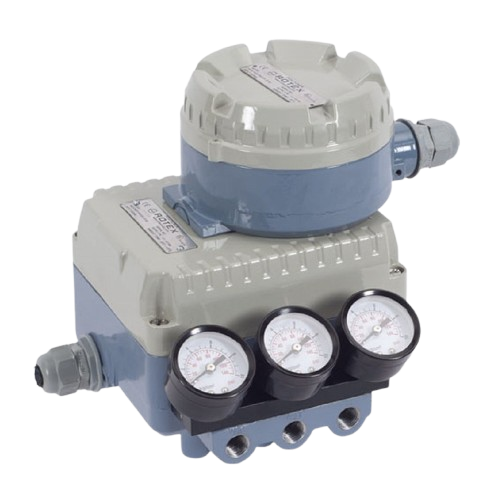

Rotex Electro Pneumatic Positioner
Rotex
$352.00$321.00
Working Mode | Double acting |
Structure | Control |
Valve Motion | Linear Motion Valve |
Material | Aluminium Die Casting |
Input Pressure | 4 to 20 mA DC constant current with maximum 30 VDC |
Port Size | 1/4" BSP / NPT |
Stroke Length | 6" |
Model Name/Number | Rotex RTX 1000 |
Series | RTX |
Supply Air Pressure Mpa | 0.3 bar above actuator requirement (minimum 1.4 bar and maximum 7 bar) |
Type | ELECTROPNEUMATIC |
Rotex Make Linear Positioner(With Inbuilt PTR) Model : RTX1000-L-D-2-L2-2G-4R-ST-ND-CType : Linear Actuating Type : Double ActingOrifice : 2mmFeedback Lever : 30-70Port Conn : 1/4"BSP,Conduit Type : 1/2"NPTTempeature : 20 to 80 Deg CIndicator : No domePTR : Inbuilt PTR
