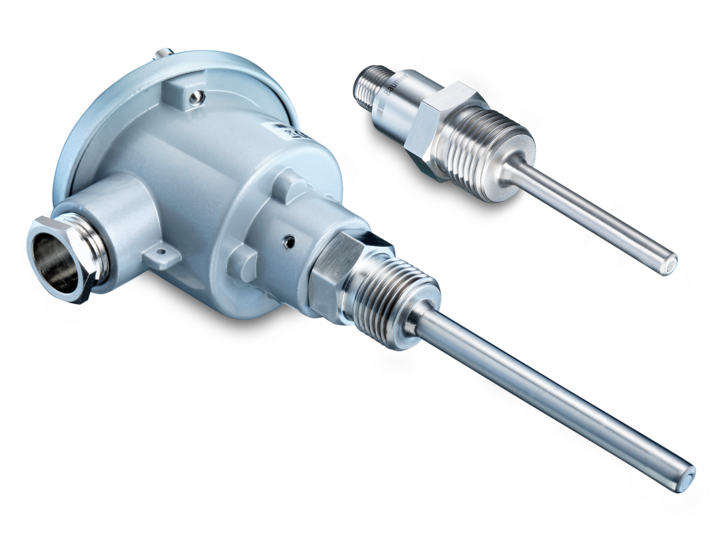

RTD
Baumer
$22.00$17.00
Performance characteristics
Process temperature
Refer to section "Operating conditions"
Max. flow velocity
40 m/s , gases
5 m/s , liquids
Pt100 accuracy class (EN 60751)
1/1 B ± (0.3 + 0.005 × t)°C
1/1 A ± (0,15 + 0,002 × t)°C
1/3 B ± 1/3 × (0.3 + 0.005 × t)°C
1/6 B ± 1/6 × (0.3 + 0.005 × t)°C
Pt1000 accuracy class (EN 60751)
1/1 B ± (0.3 + 0.005 × t)°C
1/3 B ± 1/3 × (0.3 + 0.005 × t)°C
Thermal response time, T50
≤ 1.5 s , Ø4 mm
≤ 6.1 s , Ø6 mm
≤ 7.6 s , Ø8 mm
≤ 13.6 s , Ø8 mm with insert
≤ 11.1 s , Ø10 mm
≤ 28.1 s , Ø10 mm with insert
Process pressure
Refer to section "Operating conditions"
Process connection
Sensor length
20 … 3000 mm
Sensor tube material
AISI 316L (1.4404)
Surface roughness wetted parts
Ra ≤ 0.8 µm
Ambient conditions
Degree of protection (EN 60529)
IP 65
Humidity
≤ 100 % RH , condensing
Insulation resistance
> 100 MΩ , 500 V DC (for Rail version)
Insulation voltage
600 V AC , EN 50155 (for Rail version)
Vibration (sinusoidal) (EN 60068-2-6)
1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Output signal
Without transmitter
1 x Pt100, 2-wire
1 x Pt100, 4-wire
2 x Pt100, 2-wire
1 x Pt1000, 2-wire
With transmitter
4 … 20 mA , 2-wire
4 … 20 mA , 2-wire + HART®
Compliance and approvals
EMC
EN 61326-1
Railway applications
EN 50155
Explosion protection
ATEX II 1 G Ex ia IIC T6...T4
IECEx Ex ia IIC T6...T4
ATEX II 3 G Ex ec IIC T5
Ex ia Simple apparatus, gas and dust
