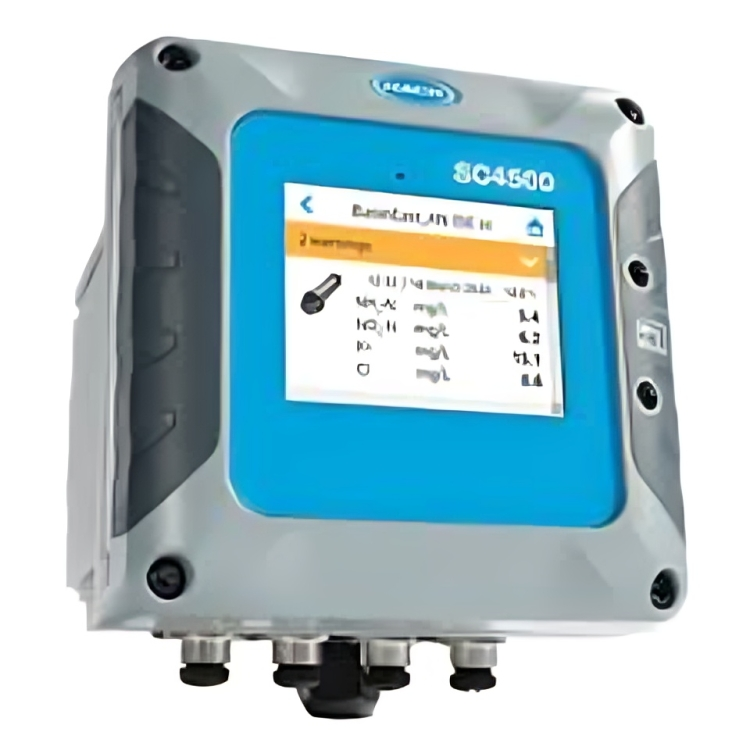

SC 4500 Transmitter
Hach
$2340.00$1755.00
Control Type | PID Control |
Model Name/Number | SC4500 |
Usage/Application | Wastewater/Drinking Water/Industrial Water/Other |
Type | Semi-Automatic |
Power Consumption | 28 Watt |
Weight | 3.7 lb (controller only, w/o modules) |
Chlorine Range | Sensor Dependand |
Conductivity Range | Depends on Sensor |
Ph Range | 0-14pH |
Relative Humidity | 95% |
Code Number | SC4500 |
Description | Microprocessor-controlled and menu-driven controller that operates the sensor |
Temperature | -20 to 70 Degree C |
Make | HACH |
Humidity | 95 |
Buzzer Output | NO |
Calibration | As per Sensor |
Communication | Analog |
Contact Capacity | Two relays SPDT AC controller Max switching voltage |
Current Output Type | Five 0-20 mA or 4-20 mA analog outputs on each analog output module Up to two analog Input m |
Digital Output Signal | Profibus DPV1 module Modbus TCP Profinet IO module Ethernet IP module |
External Dimensions | 1/2 DIN 144 x 144 x 192 mm |
Front Panel | LCD Display |
Installation Height | 136mm |
Over Current Protection | External |
Protection | UL50E type 4X, IEC EN 60529-IP 66, NEMA 250 type 4X Metal enclosure with a corrosion-resistant finis |
Structure | Polycarbonate |
Temp Sensor Input | If built in sensor |
Brand | HACH |
Display | 3.5 inch TFT color display with capacitive touchpad |
Enclosure Rating | UL50E type 4X IEC/EN 60529-IP 66 NEMA 250 type 4X Metal enclosure with a corrosion-resistant |
Network Connectivity | LAN Two Ethernet connectors (10/100 Mbps) Cellular External 4G Wi-Fi (Optional) |
USB Port | Used for data download and software upload. The controller records approximately 20,000 data points |
Compliance Certifications | CE ETL certified to UL and CSA safety standards (with all sensor types), FCC, ISED, KC, RCM, EAC,UL |
