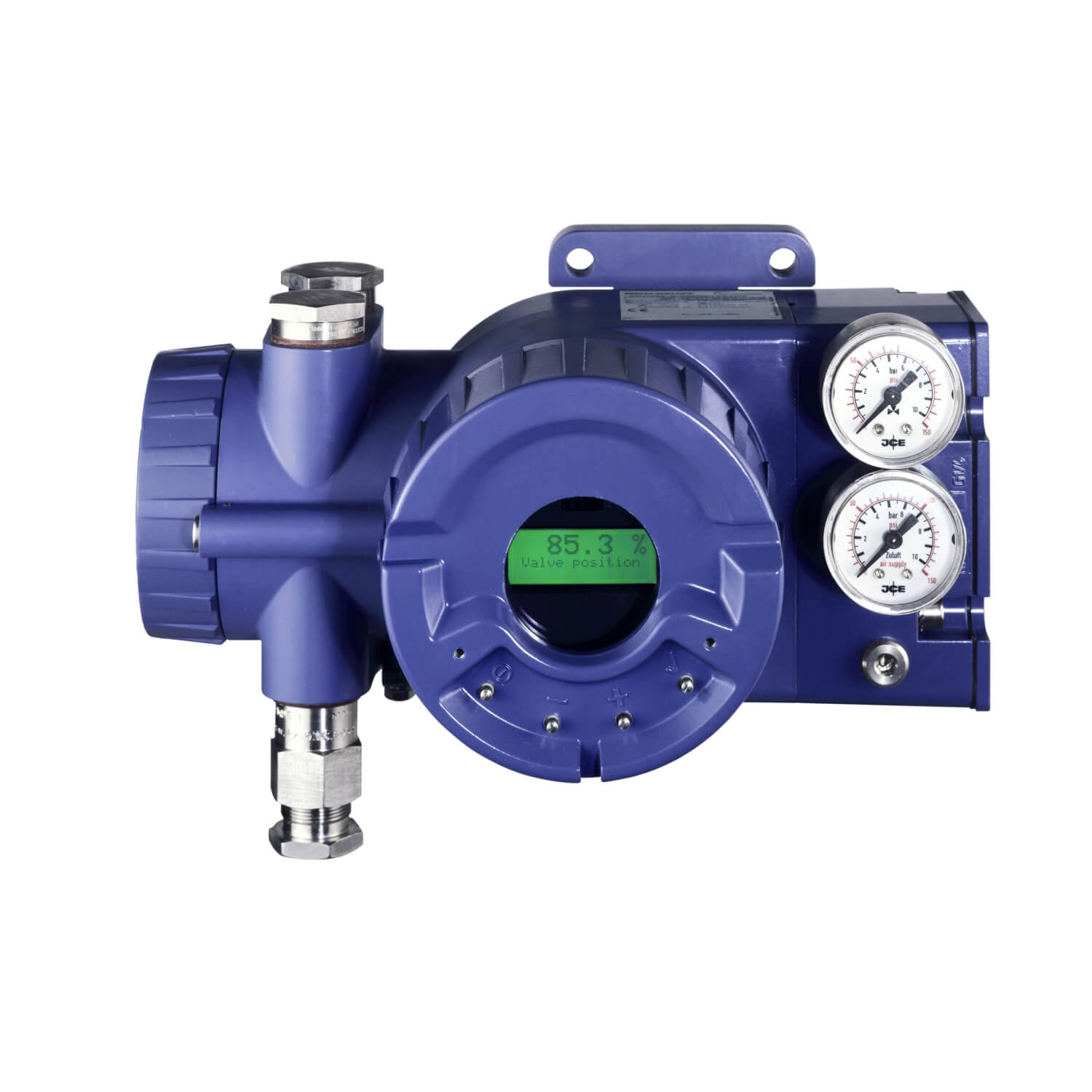

Smart Electropneumatic Positioner SRD960

schneider

$2340.00$1955.00

	Main
Range of Product	Valve Positioners
Product or Component Type	Valve positioner
Communication port protocol	HART, 4...20 mA Profibus FOUNDATION fieldbus
Market Segment	Process industry

	Complementary
Housing material	Aluminium alloy
Pneumatic connection type	0.25 inch 18 NPT G 1/4
Network and machine diagnosis type	Auto diagnostic Step response analysis Position and response histogramms
Safety level	SIL 3
Input pressure	1.4...6 bar 20...90 psi
Maximum pressure	6 bar 90 psi
Stroke range	8...260 mm
Maximum hysteresis	0.3 %
Linearity	< 0.4 % of the travel span
Pneumatic operation	Single acting Double acting
Operating angle	0…95 °

	Environment
Ambient air temperature for operation	-40…176 °F (-40…80 °C) -40…80 °C (-40…176 °F)
IP Degree of Protection	IP66
NEMA Degree of Protection	NEMA 4X
Product certifications	ATEX FM CSA
