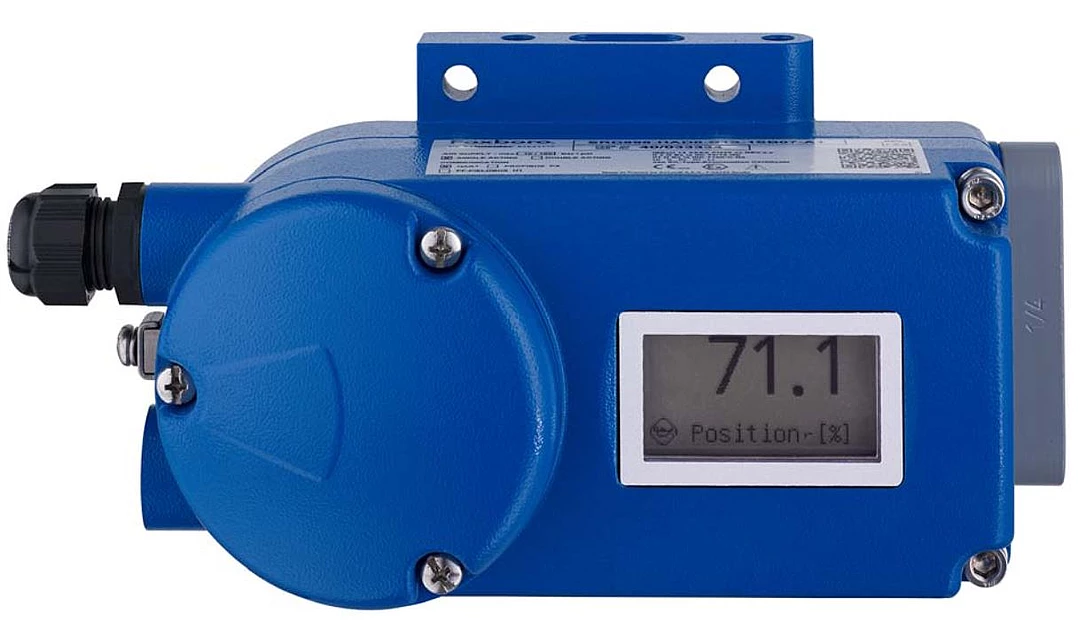

Smart Electropneumatic Positioner SRD998

schneider

$2534.00$2180.00

	Main
Range of Product	Valve Positioners
Product or Component Type	Valve positioner
Communication port protocol	HART, 4...20 mA
Market Segment	Process industry

	Complementary
Housing material	Aluminium alloy Powder coated
Pneumatic connection type	0.25 inch 18 NPT G 1/4
Thread type	M20 x 1.5 1/2" NPT
Network and machine diagnosis type	Auto diagnostic Step response analysis Position and response histogramms
Input pressure	1.4...10 bar
Maximum pressure	10 bar 150 psi
Stroke range	2...260 mm
Maximum hysteresis	0.3 %
Linearity	< 0.6 % of the travel span
Pneumatic operation	Single acting Double acting
Operating angle	0…95 °

	Environment
Ambient air temperature for operation	-40…176 °F (-40…80 °C) -40…80 °C (-40…176 °F)
IP Degree of Protection	IP66
Product certifications	ATEX INMETRO NEPSI PESO EAC KOSHA
