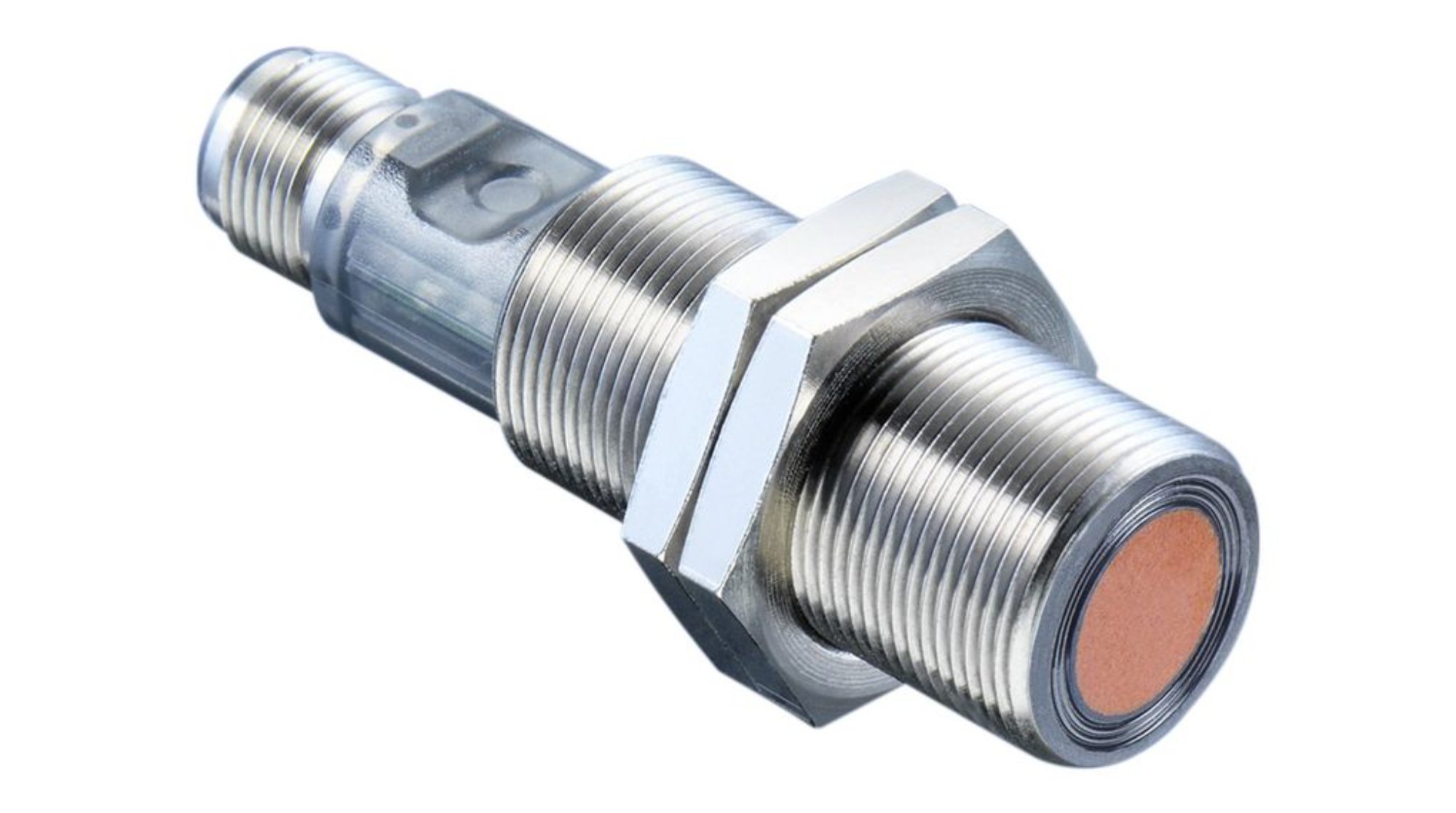

Ultrasonic proximity sensor

General data

Scanning range Sd

• 100 … 1000 mm

Scanning range far limit Sde

• 100 … 1000 mm

Hysteresis typ.

• 4 % Sde

Repeat accuracy

• 0.5 mm

Temperature drift

• < 2 % Sde

Power-up drift

• Compensated after 10 min.

Response time ton

• < 50 ms

Release time toff

• < 50 ms

Sonic frequency

• 220 kHz

Adjustment

• qTeach

Light indicator

• LED yellow

Power on indication

• LED green

Alignment measuring axis

• < 2°

Electrical data

Voltage supply range +Vs

• 12 … 30 VDC

Current consumption typ.

• 35 mA

Output circuit

• Push-pull

Output current

• 100 mA

Voltage drop Vd

• <3.5 VDC

Residual ripple

• < 10 % Vs

Short circuit protection

• Yes

Reverse polarity protection

• Yes

Mechanical data

Design

• Cylindrical threaded

Housing material

• Brass nickel plated / TR90

Width / diameter

• 18 mm

Height / length

• 64 mm

Connection types

• Connector M12

Ambient conditions

Operating temperature

• -25 … +70 °C

Storage temperature

• -40 … +85 °C

Protection class

• IP 67
