WHAT IS HART COMMUNICATION? HERE'S WHY IT’S CRITICAL IN MODERN INSTRUMENTATION
Learn how HART (Highway Addressable Remote Transducer) enhances analog 4 20 mA loops with digital data—boosting diagnostics, calibration, and remote operations without rewiring.
INTRO: BRIDGING ANALOG & DIGITAL WORLDS
Modern instrumentation systems blend legacy hardware with smart capabilities. The HART protocol—Highway Addressable Remote Transducer—lets devices retain the familiar 4‑20 mA analog connection while adding digital communication on the same wiring. This hybrid approach ensures richer data, without disrupting existing infrastructure. It’s why HART remains the most widely used communication protocol in process automation today.
WHAT IS HART?
HART is a bi-directional, hybrid communication protocol combining analog and digital signals. The 4‑20 mA current loop carries the main process variable (e.g., pressure, flow), while a digital signal is superimposed using Frequency Shift Keying (FSK)—1,200 Hz for binary 1, and 2,200 Hz for binary 0. Because the FSK is balanced around zero, it doesn’t affect the analog measurement.
Developed in the 1980s by Emerson and later standardized in the 1990s, HART has matured through multiple revisions while preserving backward compatibility.
HOW HART WORKS: MODES & COMMUNICATION

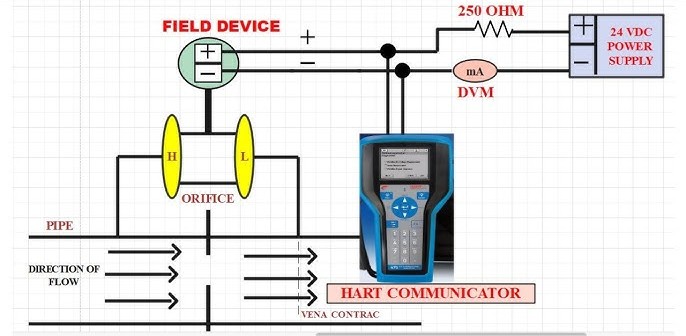

Point-to-Point Mode: One device per 4‑20 mA loop. Analog handles the primary variable; digital data (e.g., diagnostics, secondary variables) is overlaid.
Multidrop Mode: Several HART devices share a loop, each assigned a unique address (up to 63 devices in modern versions). The analog loop is held at 4 mA, and all communication occurs digitally.
Communication follows a request–reply pattern: a master (like a DCS or PLC) sends commands, and field instruments respond.
WHY HART STILL MATTERS
a) Seamless Upgrade Path
Leverage the existing 4‑20 mA wiring—no need for new cabling when upgrading to intelligent communication.
b) Expanded Device Visibility
Access diagnostics, device status, secondary variables, calibration info, and more—all remotely.
c) Cost‑Effective & Reliable
Hybrid communication keeps costs down and ensures reliability, even in harsh control environments.
d) Flexible Integration

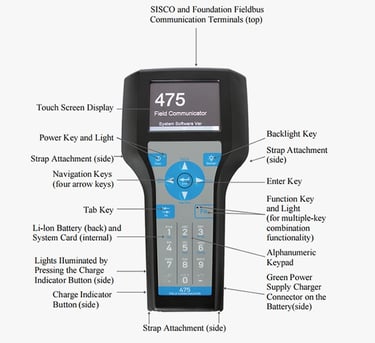

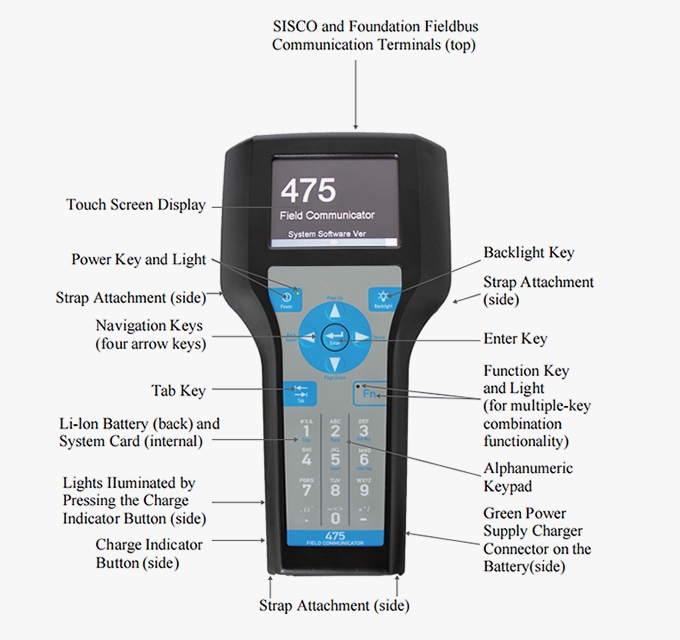

Open standard ensures interoperability with devices and control systems across vendors, and allows for both primary and secondary master devices (e.g., a control system and a handheld communicator can coexist).
e) Remote Maintenance & Diagnostics
Technicians can calibrate, configure, or troubleshoot instruments without physically reaching them—a major advantage for hazardous or remote locations. HART-IP even enables this over IP networks globally.
ADVANCED VERSIONS: HART-IP
HART-IP brings HART communication into Ethernet networks with IP addressing, offering fast data rates (e.g., 10 Mb/s) and modern security, including TLS, audit logs, and syslog support.
CONCLUSION
HART enables a powerful marriage of analog simplicity and digital intelligence. It makes instrumentation smarter, maintenance easier, and operations more insightful—all without uprooting existing infrastructure. By incorporating HART into your automation strategy, your plant gains diagnostics, configurability, and future-proof scalability.
